Integrated side-shift and fork-positioning functions provide flexible adjustment for different load widths and handling needs.
Multi-directional Forklift

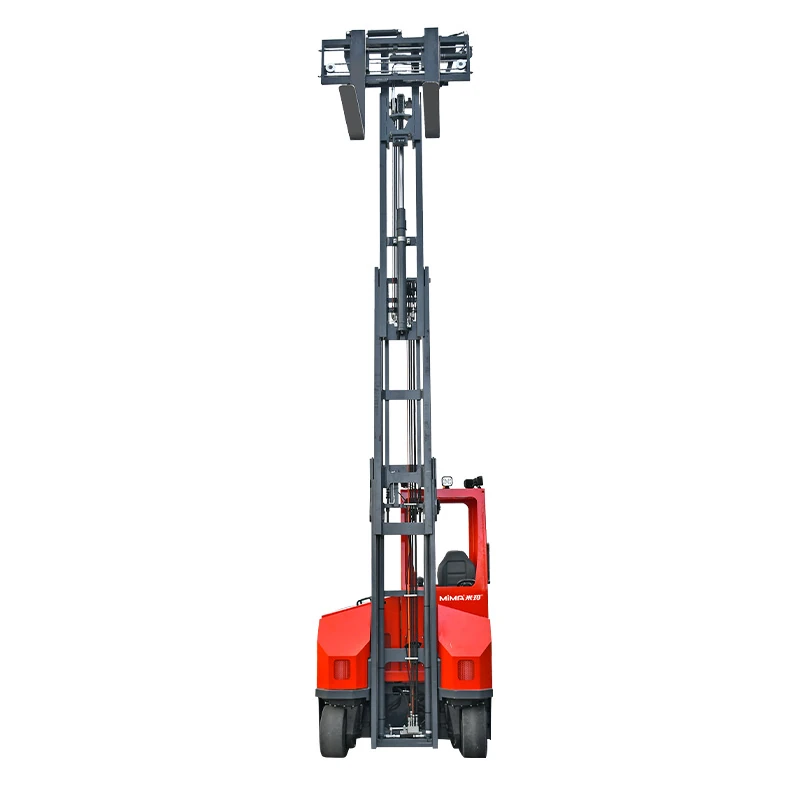

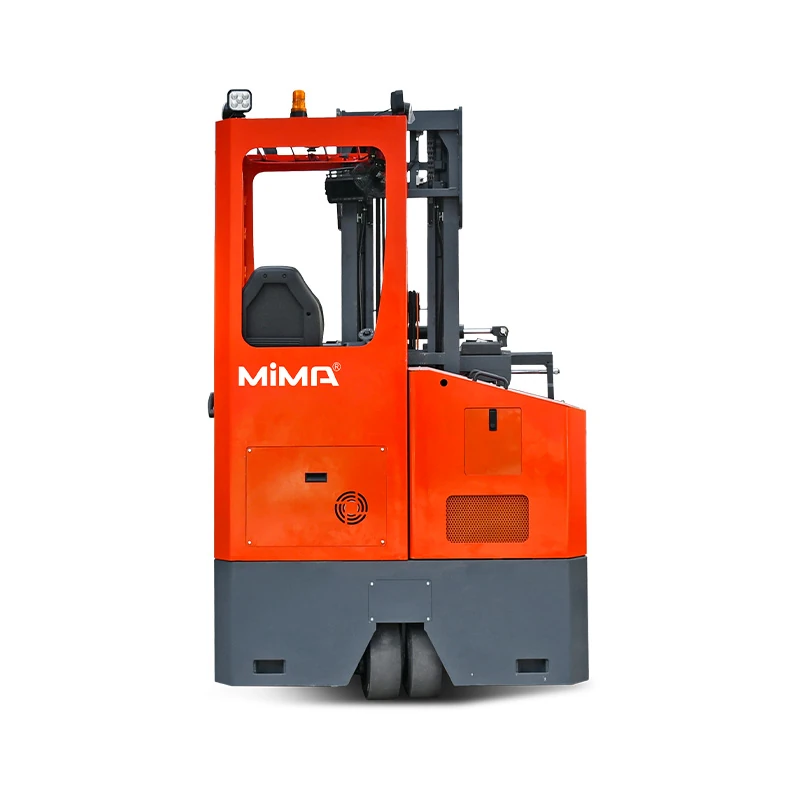

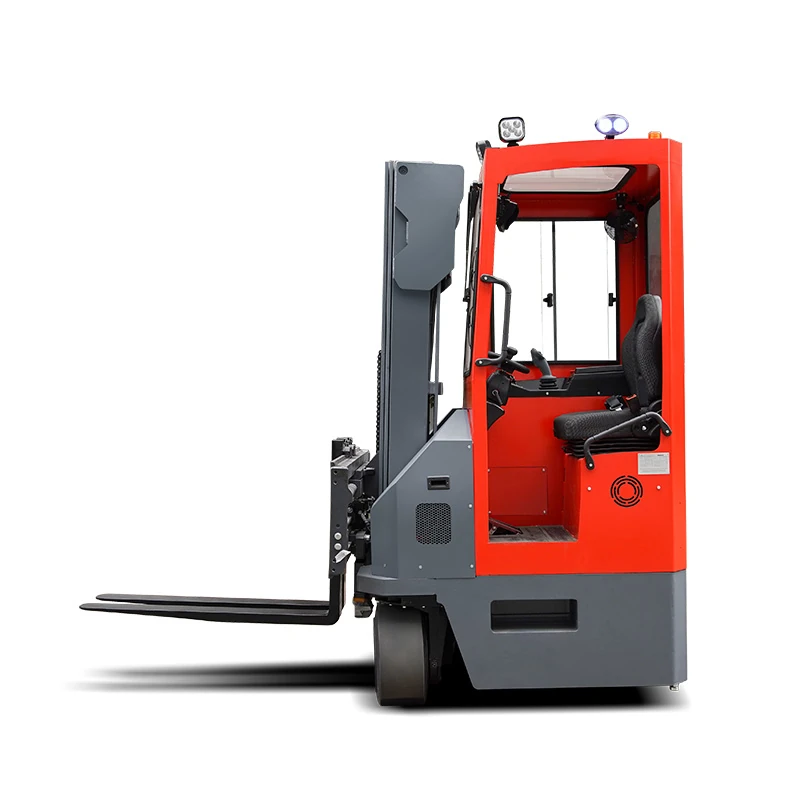

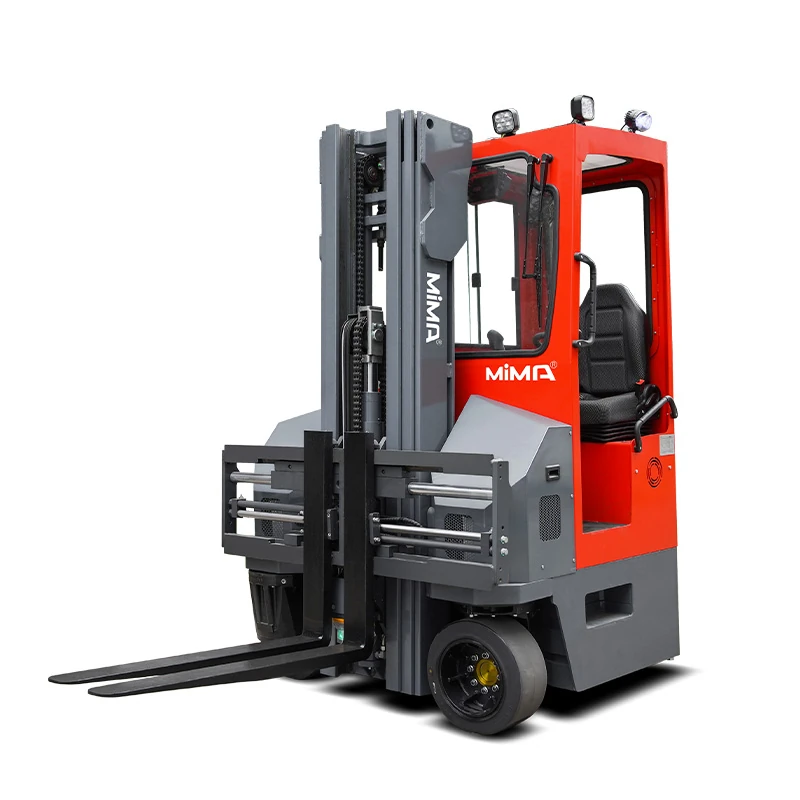

3.0T Side Seat Electric Multi-directional Counterbalance Forklift MQK30
Load Capacity
3,000kgs
Lift Height
3,600–8,000mm
MQK30 Side Seat is a 3.0-tonne electric multi-directional counterbalance forklift for handling long and conventional loads. Its counterbalanced chassis, dual front-wheel drive and independent steering enable straight, sideways and diagonal travel, plus turning on the spot. Adjustable forks with integrated side shift support narrow-aisle stacking and outdoor yard operations.
Ideal For
- Long materials and bulky loads
- Narrow-aisle stacking operations
- Outdoor yards and mixed indoor-outdoor handling
Product Highlights
Multi-function handle brings key controls together for convenient, precise and efficient operation.
Solid tire design provides stable traction and reliable travel performance for demanding operations.
Technical Data
| Specification | MQK30 (Side Seat) |
|---|---|
| Model | MQK30 (Side Seat) |
| Operation Type | |
| Load Capacity | 3,000kgs |
| Lift Height | 3,600–8,000mm |
| Mast Type | Single Mast, Duplex Mast, Triple Mast |
| Fork Outside Spread | 350–1,450 mm |
| Aisle Width | 2,940 mm / 3,100 mm |
| Battery Spec | 48V/600Ah lithium battery (standard); 48V/880Ah lead-acid battery (optional) |
Product Description
Electric Multi-directional Counterbalance Forklift
The MiMA MQK30 is a side-seat electric multi-directional counterbalance forklift with a rated capacity of 3,000 kg at a 500 mm load centre. Its counterbalanced construction supports both long-load handling and conventional pallet operations.
Multi-directional Drive
Dual front-wheel drive and independently controlled steering enable straight, sideways and diagonal travel, as well as turning on the spot. Straight travel speed is 9–10 km/h, while sideways travel speed is 7–8 km/h.
Fork and Aisle Configuration
The standard fork positioner provides a 350–1,450 mm outside spread and integrated ±100 mm side shift. The specified minimum stacking aisle width is 2,940 mm or 3,100 mm, depending on pallet orientation.
Mast Options
Triplex full-free masts are available with lift heights from 3,600 to 8,000 mm. Mast tilt is 1° forward and 3.5° backward. Residual capacity varies with lift height, load centre and attachment configuration.
Drive and Battery System
The MQK30 uses a 7 kW AC drive motor and a 12.8 kW AC lift motor. A 48V/600Ah lithium battery is standard, with a 48V/880Ah lead-acid battery available as an option.
Operation and Safety
Electronic steering, an integrated control handle and wheel-position display support multi-directional operation. Electromagnetic braking, LED lighting and an operator-presence monitoring system are also included.
Frequently Asked Questions
Q1: What is a multi-directional counterbalance forklift?
It combines counterbalanced load handling with multi-directional travel. The truck can handle conventional pallets while also travelling sideways with long materials in restricted spaces.
Q2: How does the MQK30 differ from a conventional counterbalance forklift?
A conventional counterbalance forklift mainly travels forwards and backwards. The MQK30 can also travel sideways and diagonally and turn on the spot, reducing the manoeuvring space required for long loads.
Q3: What types of loads is the MQK30 designed to handle?
It is designed for long materials, bulky loads and conventional palletised goods. The correct configuration depends on load weight, dimensions, load centre and required lift height.
Q4: How is the required stacking aisle width calculated?
Aisle width depends on the load dimensions, pallet orientation, fork spread, rack layout and required operating clearance. The specified minimum is 2,940 mm or 3,100 mm under the datasheet reference conditions.
Q5: Can the MQK30 lift 3,000 kg to 8,000 mm?
Not under every configuration. The rated capacity is 3,000 kg at a 500 mm load centre, but residual capacity decreases as lift height or load centre increases. The load chart must be checked during selection.
Q6: Which mast configurations are available?
Triplex full-free masts are available with lift heights from 3,600 to 8,000 mm. Mast selection should consider lift height, closed mast height, free lift and residual capacity.
Q7: Which battery options are available?
The standard configuration uses a 48V/600Ah lithium battery. A 48V/880Ah lead-acid battery is available as an option.
Q8: What information is required to select the correct MQK30?
Required information includes load weight and dimensions, load centre, maximum lift height, aisle width, rack layout, floor conditions, working hours and preferred battery type.
