Electric Articulated Forklift
What Is an Electric Articulated Forklift?
One truck for pallet transfer and narrow-aisle stacking

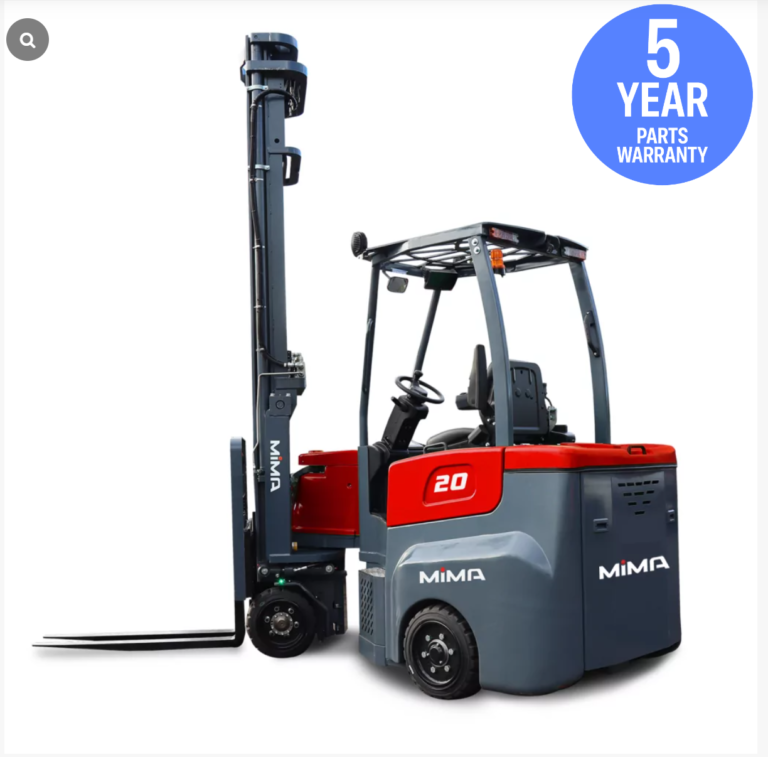

2.0T Electric Articulated Forklift for Narrow Aisles MJ20
- Load Capacity
- 2,000 kg
- Lift Height
- Up to 12,500 mm
2.5T Rear-Drive Electric Articulated Forklift MJD25
- Load Capacity
- 2,500 kg
- Lift Height
- 3,300–8,000 mm
3.0T Electric Articulated Forklift for One-Stop Handling MJ30
- Load Capacity
- 3,000 kg at 600 mm
- Lift Height
- 4,600–8,000 mm

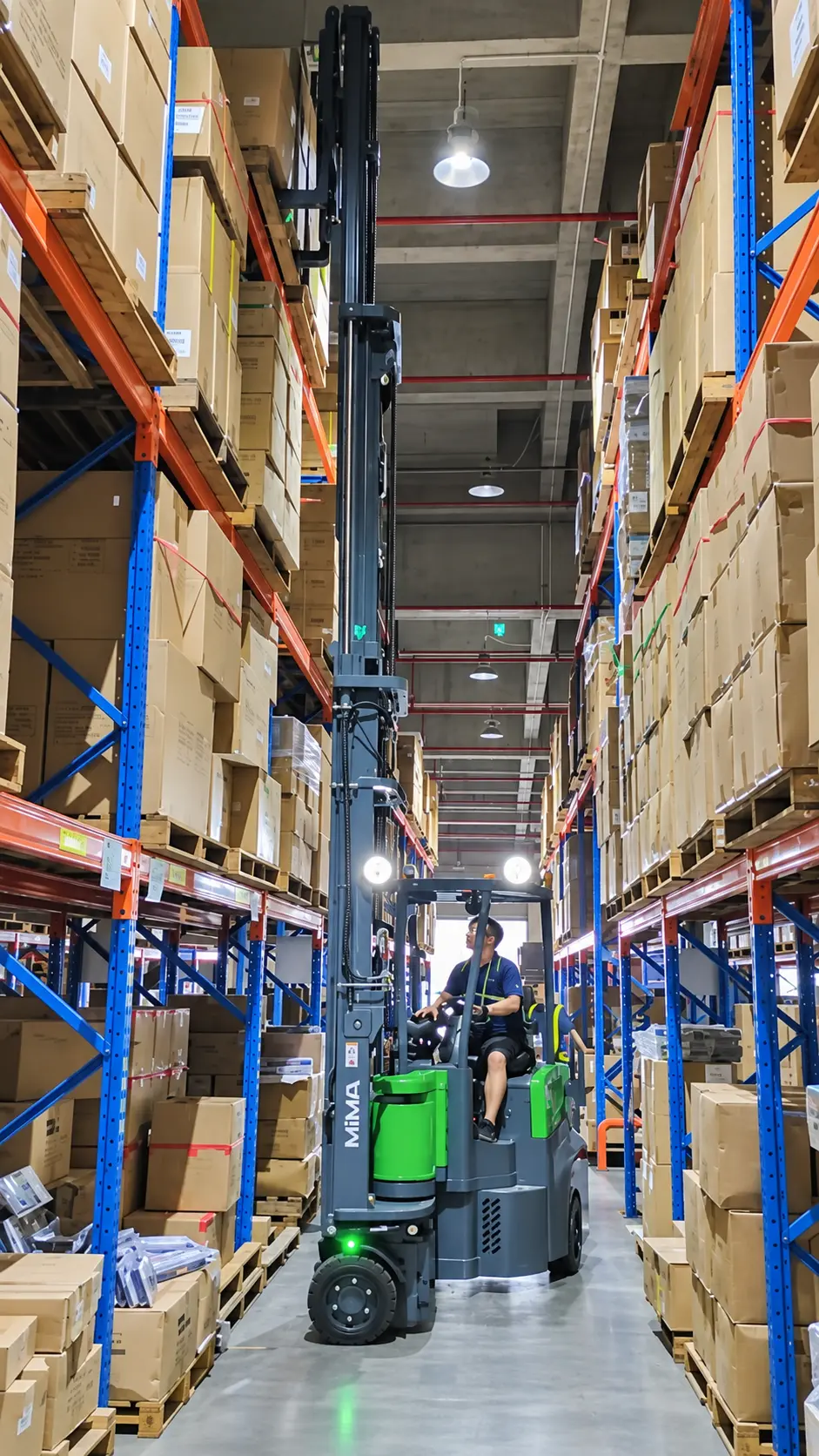

Designed for Flexible Narrow-Aisle Handling
Articulated mast movement combines compact aisle operation, high-level stacking and pallet transfer in one electric truck.
Articulated Mast Design
The mast turns toward either side of the racking, reducing the space required to position pallets without rotating the complete truck.
One Truck from Yard to Rack
Collect, transport and stack pallets with one truck in suitable indoor-outdoor applications, reducing transfers between separate machines.
High-Level Stacking
Triple- and quad-mast configurations support medium- and high-rack storage, with selected MJ20 versions lifting up to 12.5 metres.
Multiple Chassis Options
Choose narrow-body, wide-body, rear-drive or heavy-duty formats according to aisle width, lift height, residual capacity and load weight.
Which Electric Articulated Forklift Is Right for You?
Compare the three current models by capacity, lift height, aisle requirement and primary application.
| Spec | MJ20 | MJD25 | MJ30 |
|---|---|---|---|
| Load capacity | 2,000 kg | 2,500 kg | 3,000 kg at 600 mm |
| Lift height | 4,600–10,000 mm narrow body 4,600–12,500 mm wide body | 3,300–8,000 mm | 4,600–8,000 mm |
| Minimum clear aisle | From 1,900 mm narrow body 2,100 mm wide body* | From 1,700 mm* | From 2,300 mm* |
| Mast swing | 210° | 180° | 210° |
| Mast format | Triple mast | Quad full-free mast | Triple mast |
| Model focus | Narrow- or wide-body flexibility | Rear drive and low closed height | Heavy-duty one-stop handling |
| Best for | High-density storage and higher lift | Containers, low clearances and tight aisles | Heavier pallets and mixed transfer routes |
How to choose: Choose MJ20 when lift height and narrow- or wide-body flexibility are the priorities. Select MJD25 for 2.5-tonne handling, tighter cross-fork aisles, lower closed mast height or suitable container work. Choose MJ30 for 3.0-tonne ground-level capacity and heavier transfer-and-stacking applications.
*Minimum aisle figures depend on the stated pallet size and orientation. Rack-to-rack width, residual capacity and outdoor suitability must be confirmed against pallet dimensions, load centre, lift height, mast, attachments, floor condition, gradients and the complete travel route. MiMA Thailand will confirm the final specification after reviewing your application.
Match the Truck to the Warehouse and Travel Route
An articulated forklift should be selected around the pallet, rack layout, aisle width, outdoor route and required lift performance.
- Maximum load, load centre and pallet orientation
- Clear stacking aisle and rack-to-rack width
- Top rack height and required lift height
- Residual capacity at the maximum operating height
- Doorways, containers, ramps and transfer distance
- Floor condition, battery and daily operating hours
MiMA Thailand can review your warehouse drawing and operating data before recommending the model, body, mast and battery configuration.
Request a Project Review
Frequently Asked Questions
What is an Electric Articulated Forklift?
It is an electric forklift with a mast assembly that pivots toward the rack. This lets the truck stack in narrower aisles while retaining pallet transport and loading capability.
How narrow can the operating aisle be?
MJD25 can work from approximately 1,700 mm with the specified cross-fork pallet arrangement. MJ20 starts from approximately 1,900 mm in narrow-body form, while MJ30 starts from approximately 2,300 mm. Final clearance depends on the pallet and rack layout.
Can one truck handle transfer and narrow-aisle stacking?
Yes. In suitable applications, an articulated forklift can collect or transport pallets and then place them directly into narrow-aisle racking, reducing transfers between separate trucks.
What is the difference between MJ20, MJD25 and MJ30?
MJ20 is a flexible 2.0-tonne model with narrow- and wide-body versions and the highest lift option. MJD25 is a 2.5-tonne rear-drive model with a low-profile quad mast. MJ30 increases rated capacity to 3.0 tonnes for heavier loads.
Can these forklifts work outdoors?
They can travel on suitable prepared outdoor surfaces before continuing indoors. Gradients, joints, drainage channels, wet conditions, door transitions and travel distance must be reviewed during model selection.
Does rated capacity apply at maximum lift height?
No. Residual capacity reduces with lift height and can change with the load centre, mast, attachment and pallet dimensions. The applicable load chart must be checked for the required rack level.
What information is needed for model selection?
Please provide the maximum load, load centre, pallet dimensions and orientation, lift height, clear aisle and rack spacing, doorway or container clearances, floor conditions, gradients, transfer route and daily operating hours.
