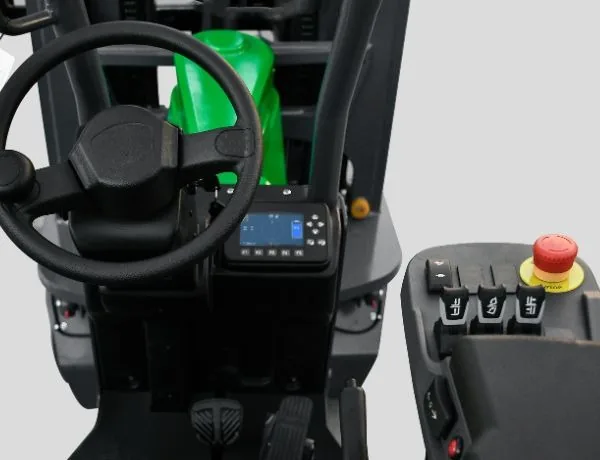

Ergonomically arranged controls keep key functions within easy reach for smooth and efficient operation.
Articulated Forklift

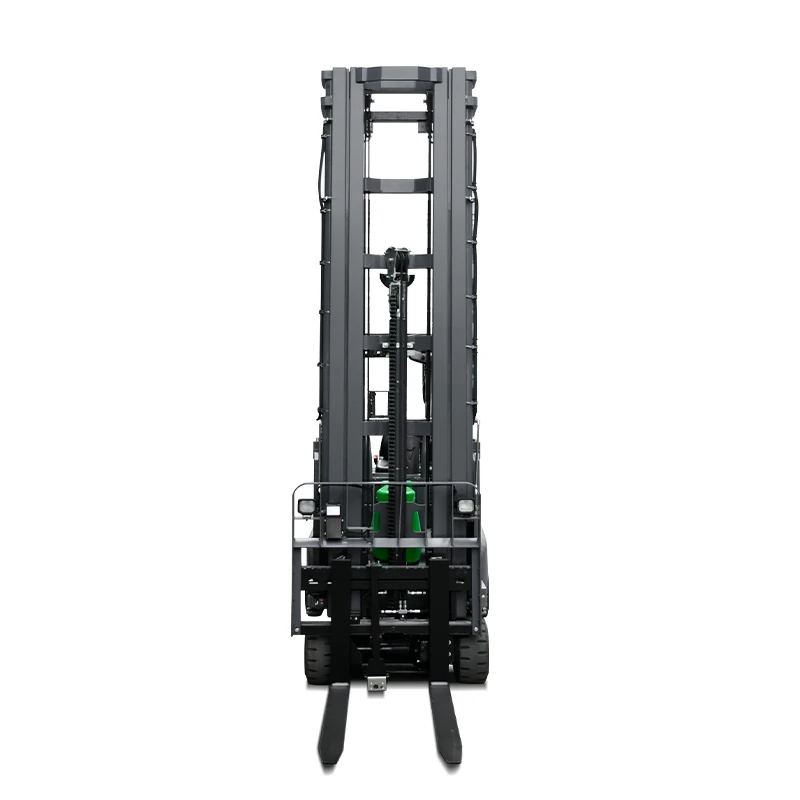

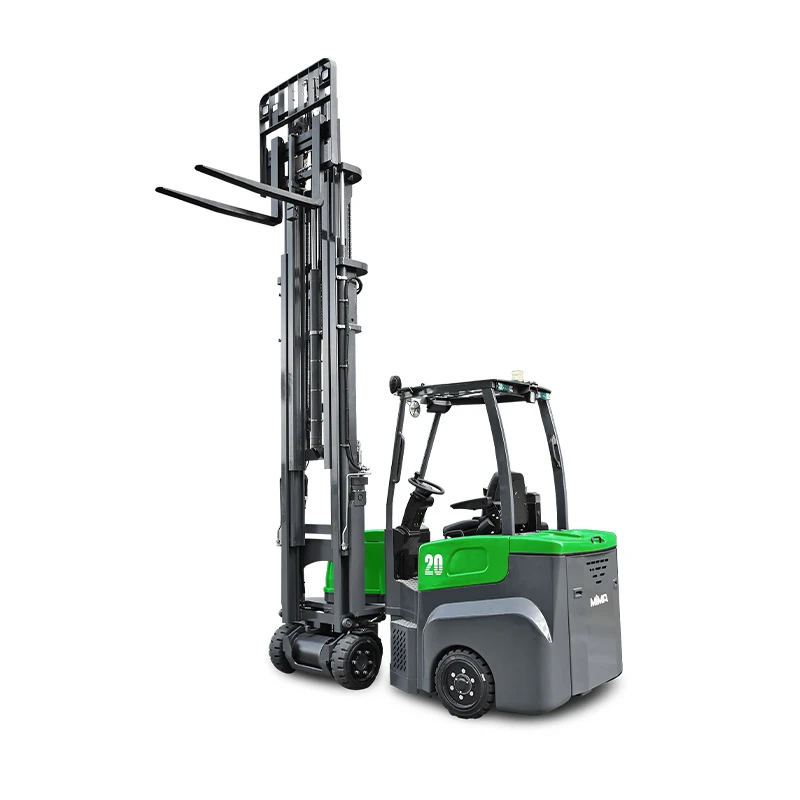

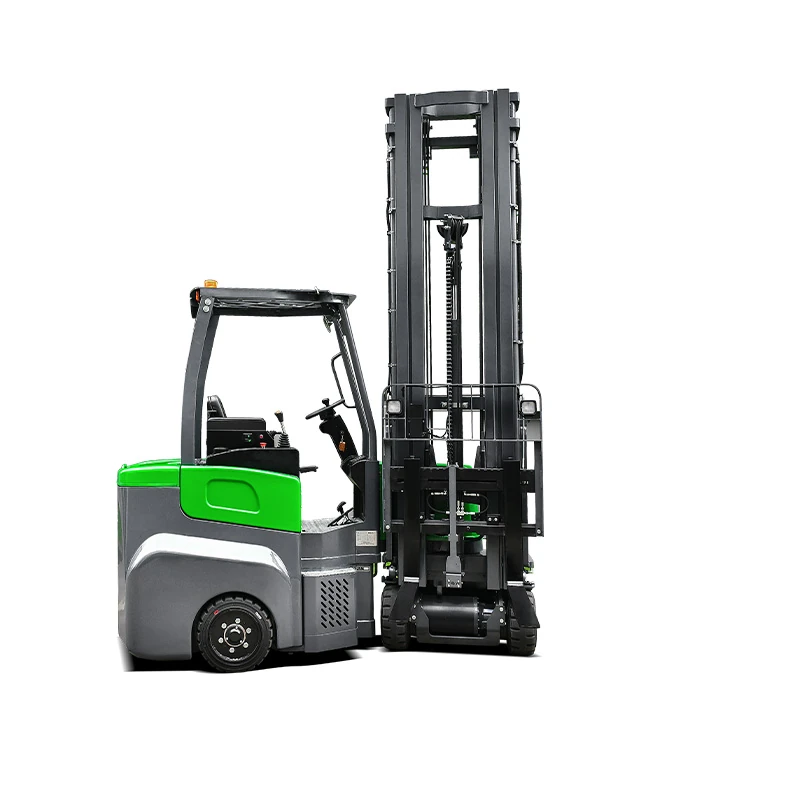

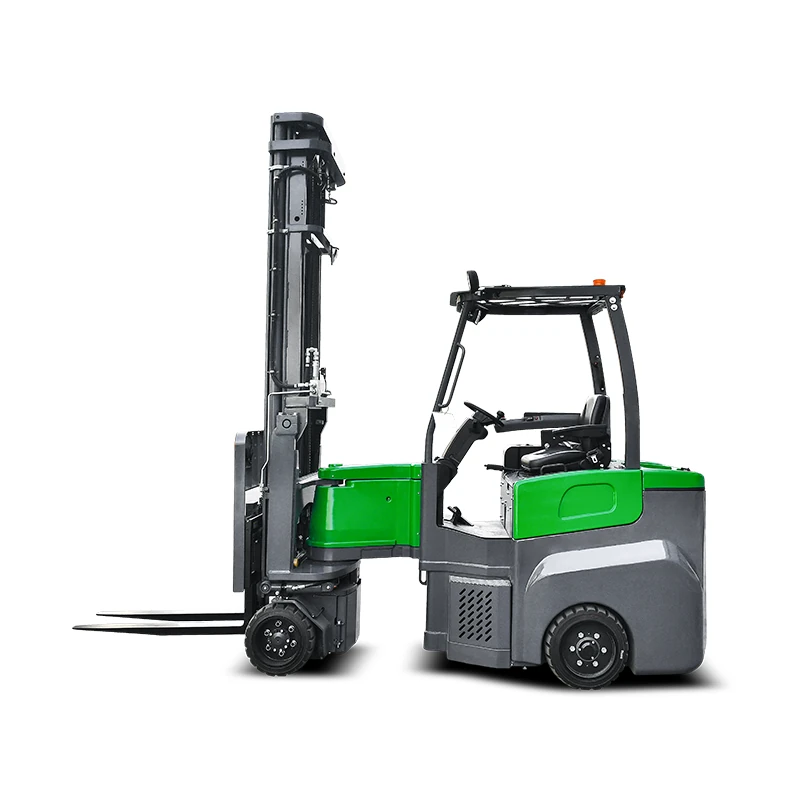

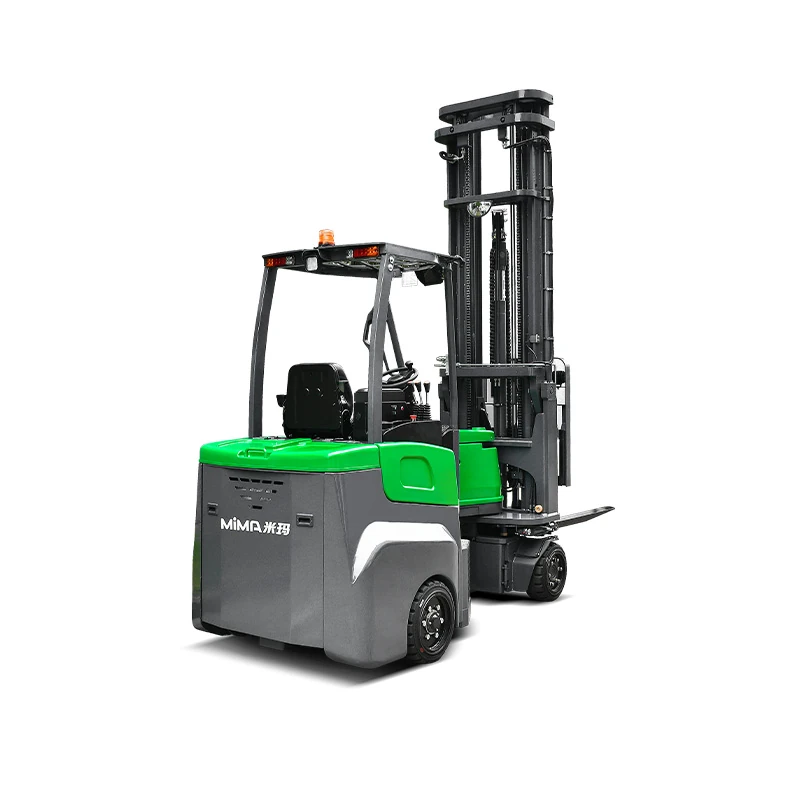

2.0T Electric Articulated Forklift For Narrow Aisle MJ20
Load Capacity
2,000 kg
Lift Height
4,600–10,000 mm narrow body; 4,600–12,500 mm wide body
MJ20 is a 2.0-tonne electric articulated forklift designed for narrow-aisle stacking and indoor-outdoor pallet transport. Its 210° mast swing allows the truck to work in aisles from 1,900 mm, while narrow- and wide-body configurations provide lift heights up to 12,500 mm. Full AC power and seated controls support efficient daily handling.
Ideal For
- High-density warehouses with restricted aisle space
- Indoor-outdoor pallet transfer and narrow-aisle stacking
- Operations seeking one truck for transport, loading and racking
Product Highlights

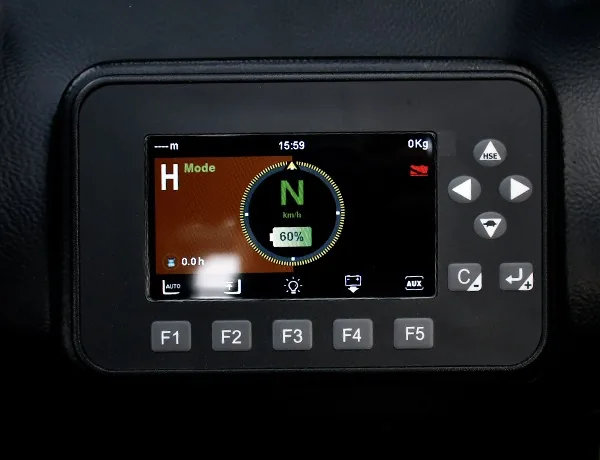

Clear display of battery status, operating hours and fault information makes truck monitoring simple and intuitive.

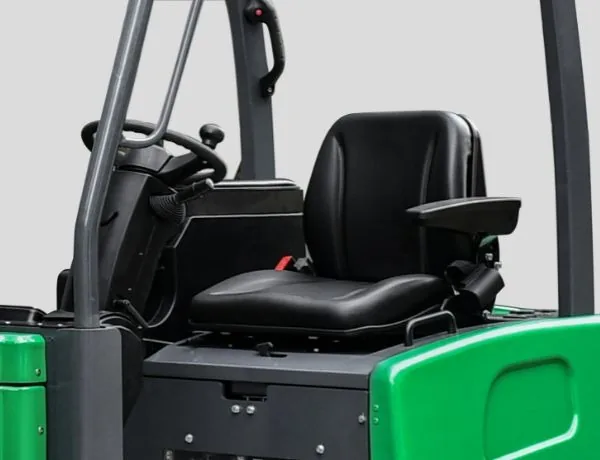

Fore-and-aft seat adjustment helps operators find a comfortable driving position and reduce fatigue.
Technical Data
| Specification | MJ20 Narrow Body / MJ20 Wide Body |
|---|---|
| Model | MJ20 Narrow Body / MJ20 Wide Body |
| Operation Type | |
| Load Capacity | 2,000 kg |
| Lift Height | 4,600–10,000 mm narrow body; 4,600–12,500 mm wide body |
| Mast Type | Triple Mast |
| Fork Outside Spread | 250–890 mm |
| Aisle Width | From 1,900 mm narrow body 2,100 mm wide body* |
| Battery Spec | 48V/900Ah lead-acid or 48V/600Ah lithium; 80V/500Ah lead-acid or 80V/460Ah lithium |
Product Description
Flexible Electric Articulated Handling
The MiMA MJ20 combines counterbalance handling with articulated VNA forklift manoeuvrability. Its 2,000 kg rated capacity suits general pallet transport, vehicle loading and high-density warehouse storage.
One Truck from Yard to Rack
The MJ20 can collect loads outdoors, travel through warehouse doorways and place pallets directly into narrow-aisle racking. This reduces load transfers between separate counterbalance and reach trucks.
210° Mast Swing
The articulated mast turns through 210°, allowing the truck body to remain within the aisle during pallet placement. The narrow-body version can operate in clear aisles from 1,900 mm with the specified pallet.
Two Body Configurations
Narrow- and wide-body versions allow the truck to be matched to aisle width, lift height and residual-capacity requirements. Maximum lift height reaches 10,000 mm on the narrow body and 12,500 mm on the wide body.
Full AC Electric Performance
A full AC drive and lift system provides responsive control with reduced routine motor maintenance. Available 48V and 80V battery configurations support different shift patterns and performance requirements.
Operator Control and Service Access
A seated driving position, adjustable controls, wide-view mast and operator-presence system support controlled daily operation. Accessible covers and service points simplify inspection and scheduled maintenance.
Frequently Asked Questions
Q1: What is an articulated forklift?
An articulated forklift uses a rotating mast assembly to place pallets at an angle to the truck body. This enables narrow-aisle stacking while retaining counterbalance-style travel and loading capability.
Q2: What is the minimum aisle width for the MJ20?
The narrow-body MJ20 requires a clear width from 1,900 mm, while the wide-body version starts from 2,100 mm. These figures are based on an 800 × 1,200 mm pallet and measured between loads. Rack-to-rack width should normally include at least 200 mm additional clearance.
Q3: Should I choose the narrow- or wide-body MJ20?
Choose the narrow body when minimising aisle width is the priority. The wide body provides higher maximum lift capability and may offer better residual capacity at elevated heights. Final selection should be based on the rack layout and required load chart.
Q4: Can the MJ20 work both indoors and outdoors?
Yes. It can transfer pallets across suitable outdoor surfaces and continue into the warehouse for narrow-aisle stacking. Floor condition, gradients, drainage channels, doorway clearances and operating environment must be checked.
Q5: Does the MJ20 retain 2,000 kg capacity at maximum lift height?
No. The 2,000 kg rating applies at the specified load centre under rated conditions. Residual capacity reduces with lift height and may also change with mast, attachment and load-centre selection. The relevant load chart must be reviewed.
Q6: Can the MJ20 replace separate counterbalance and reach trucks?
In suitable applications, one MJ20 can unload, transport and stack pallets. Whether it can replace both machines depends on yard conditions, travel distances, pallet dimensions, lift height and throughput.
Q7: Which battery configuration should I choose?
Battery selection depends on shift duration, charging opportunities and required performance. The MJ20 is available with specified 48V or 80V lead-acid and lithium configurations.
Q8: What information is required for an accurate quotation?
Provide the maximum load, load centre, pallet dimensions, maximum lift height, clear aisle width, rack-to-rack distance, floor conditions, doorway clearances and expected working hours.
