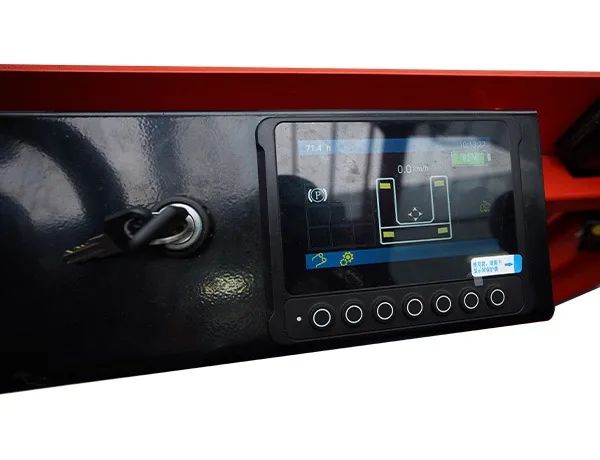

Clear real-time information helps the operator monitor truck status and operate more efficiently.
Multi-directional Forklift

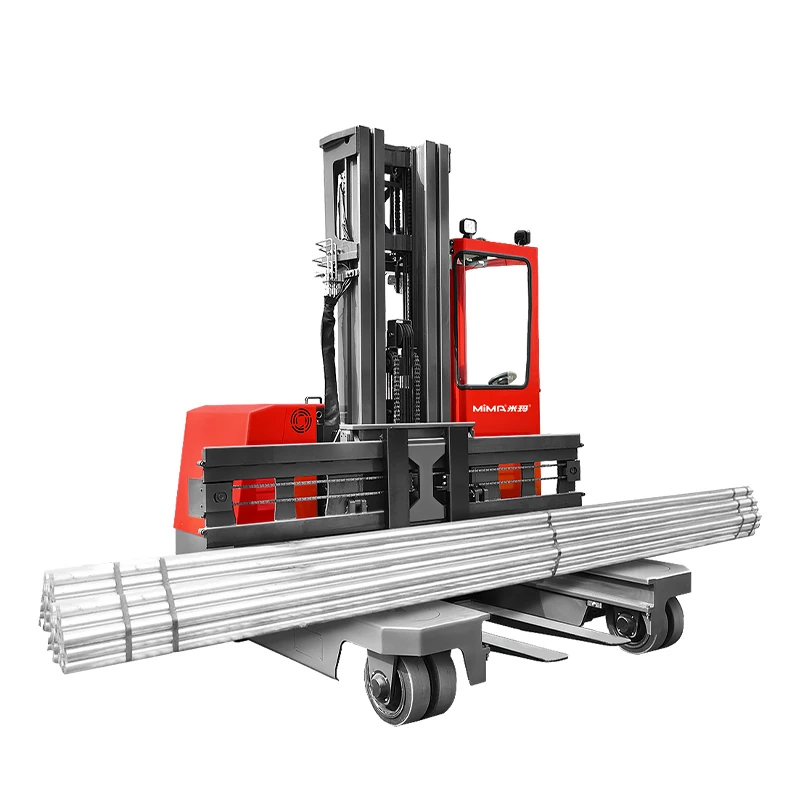

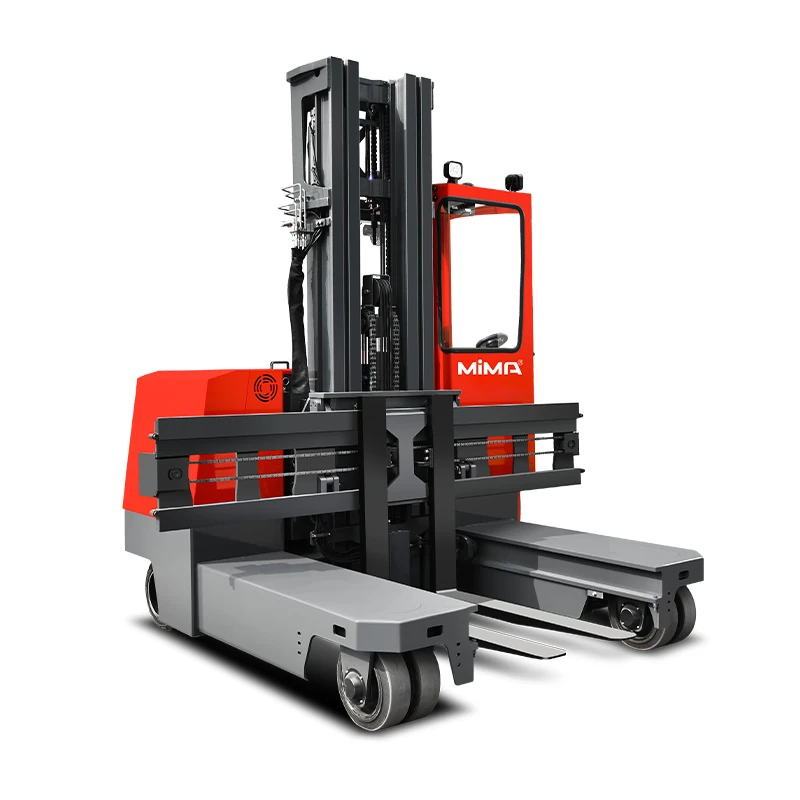

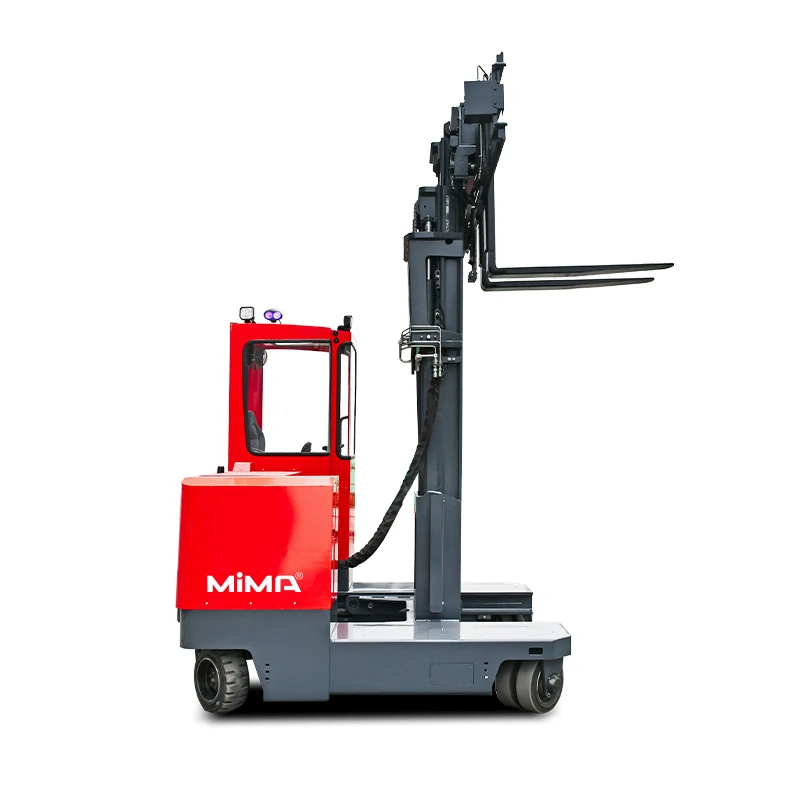

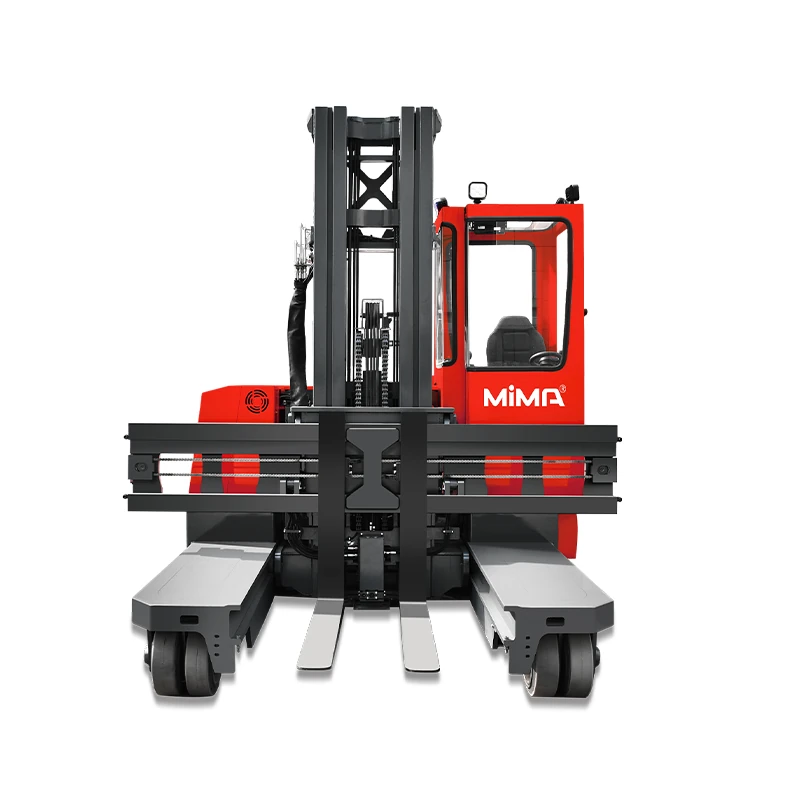

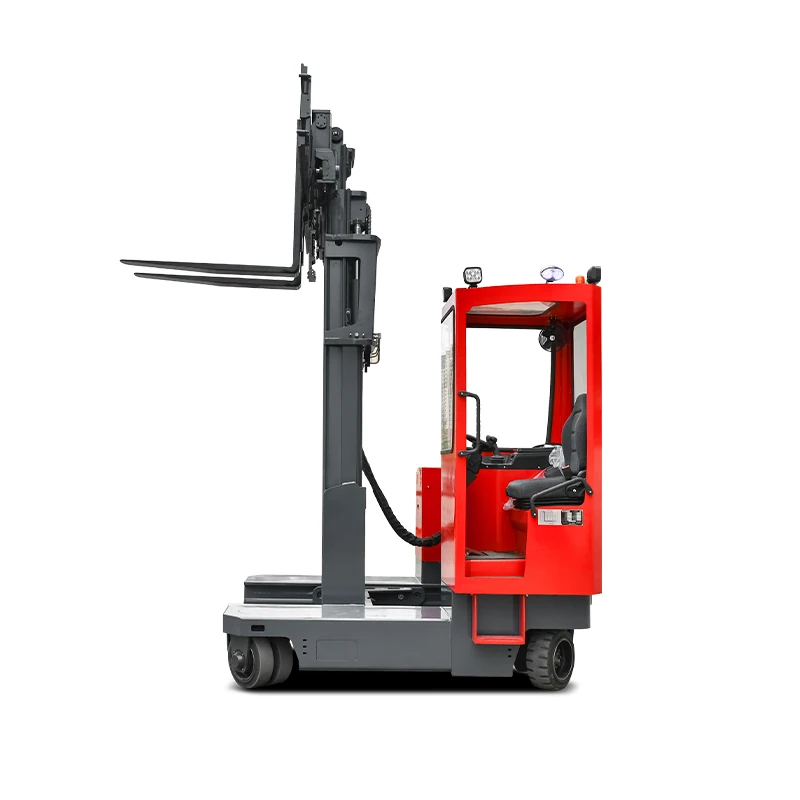

3.0T Seated Electric Multi-directional Reach Truck MQC30
Load Capacity
3,000 kg at 600 mm load centre
Lift Height
4,500–8,500 mm
MQC30 is a 3.0-tonne seated electric multi-directional reach truck designed for long materials and narrow-aisle stacking. A 1,300 mm mast reach, wide fork positioner and independent four-wheel steering enable straight, sideways and diagonal travel, plus in-situ rotation. Triplex full-free mast options provide lift heights up to 8,500 mm.
Ideal For
- Aluminium profiles, steel pipes, panels and timber
- Long-load stacking in narrow aisles
- High-rack storage requiring up to 8,500 mm lift
Product Highlights

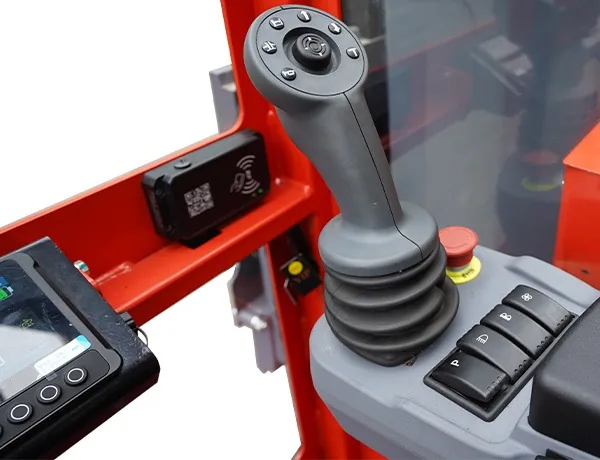

Ergonomic multi-function controls enable convenient and precise operation of key truck functions.
Technical Data
| Specification | MQC30 |
|---|---|
| Model | MQC30 |
| Operation Type | |
| Load Capacity | 3,000 kg at 600 mm load centre |
| Lift Height | 4,500–8,500 mm |
| Mast Type | Single Mast, Duplex Mast, Triple Mast |
| Fork Outside Spread | 560–2,560 mm |
| Aisle Width | From 2,750 mm* |
| Battery Spec | 48V/500Ah lead-acid battery; 48V/600Ah lithium battery optional |
Product Description
Seated Multi-directional Reach Truck
The MiMA MQC30 is a 3.0-tonne electric multi-directional reach truck for handling long materials. The mast extends 1,300 mm beyond the support arms and retracts for travelling.
Multi-directional Steering
Independent four-wheel steering enables straight, sideways and diagonal travel, plus rotation on the spot. Straight travel speed is 7–8 km/h, while sideways travel speed is 6–7 km/h.
Fork and Aisle Configuration
The adjustable fork positioner provides an outside spread of 560–2,560 mm. The reference minimum stacking aisle starts from 2,750 mm and increases according to the load dimensions.
Mast and Residual Capacity
Triplex full-free masts are available from 4,500 to 8,500 mm. Residual capacity decreases as lift height or load centre increases. A follow-up camera and display are standard with the listed mast series.
Drive and Battery System
The MQC30 uses a 6.5 kW AC drive motor and a 14 kW AC lift motor. A 48V/500Ah lead-acid battery is specified, with a 48V/600Ah lithium battery available as an option.
Operation and Braking
Electronic steering, an integrated control handle and wheel-position display support operation in different travel modes. Regenerative and electromagnetic service braking are combined with an electromagnetic parking brake.
Frequently Asked Questions
Q1: What is a multi-directional reach truck?
A multi-directional reach truck combines a retractable mast with independent steering. It can move straight, sideways and diagonally, allowing long loads to travel lengthways through restricted aisles.
Q2: What materials can the MQC30 handle?
It is designed for long materials such as aluminium profiles, steel pipes, panels, timber and door or window components. Load weight, dimensions and centre of gravity must be checked before selection.
Q3: What is the minimum aisle width for the MQC30?
The reference aisle table starts from 2,750 mm for a 5,000 mm load. Actual aisle width depends on load length, depth, overhang and rack layout. In-aisle rotation requires a separate calculation.
Q4: Can the MQC30 lift 3,000 kg to 8,500 mm?
No. The rated capacity is 3,000 kg at a 600 mm load centre, but residual capacity decreases with height. The load chart specifies 1,500 kg at 8,500 mm and a 600 mm load centre.
Q5: What is the mast reach distance?
The mast reaches 1,300 mm forwards. This allows the forks to extend beyond the support arms when picking up or depositing a load.
Q6: Which battery configurations are available?
The datasheet specifies a 48V/500Ah lead-acid battery and an optional 48V/600Ah lithium battery. The final battery should match the required operating hours and charging arrangement.
Q7: How does the MQC30 differ from a counterbalanced multi-directional forklift?
The MQC30 has support arms and a retractable mast. A counterbalanced model carries the load using its counterweight and does not use reach-truck support arms.
Q8: What information is required to configure the MQC30?
Selection requires the load weight, length, width, load centre, maximum lift height, aisle width, rack layout, floor conditions, operating hours and preferred battery type.
