Articulated Forklift

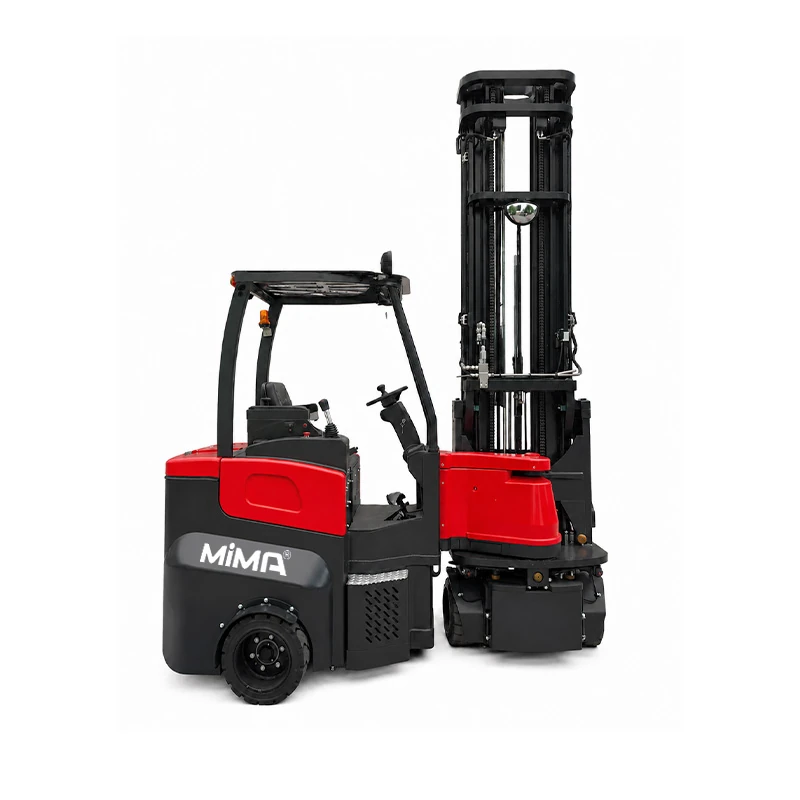

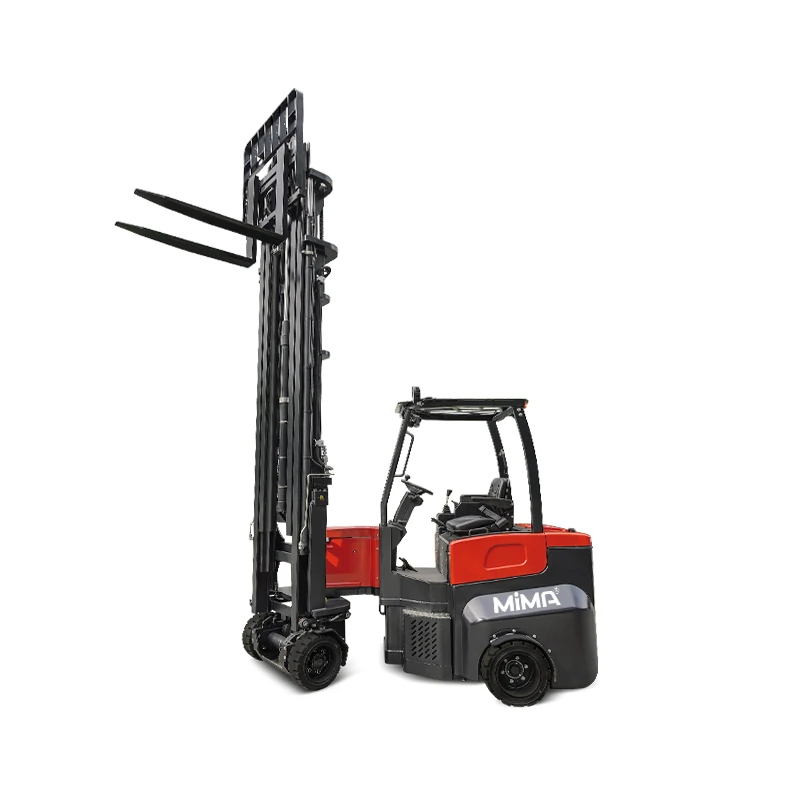

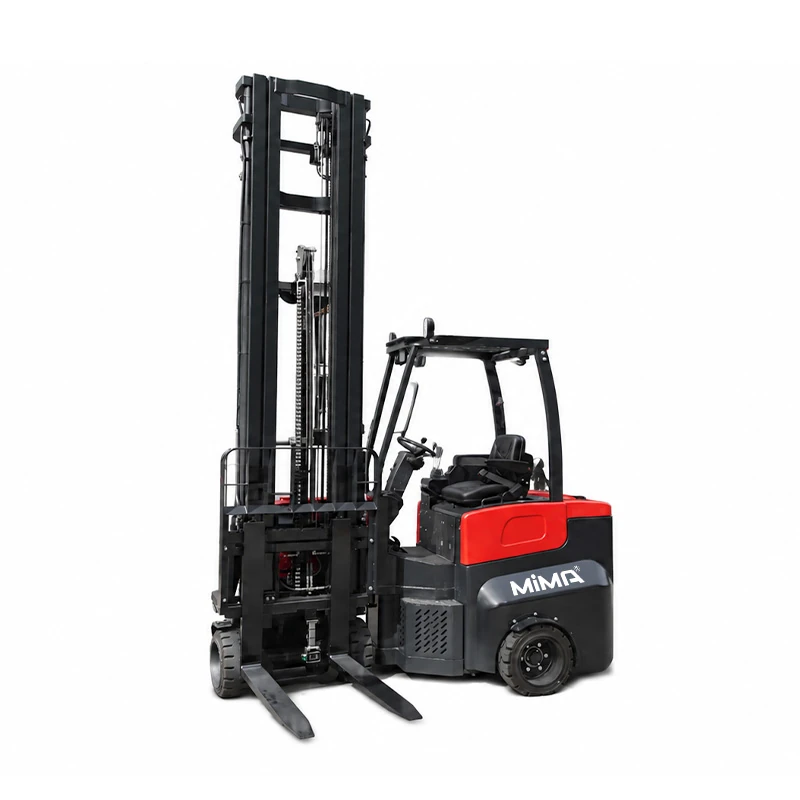

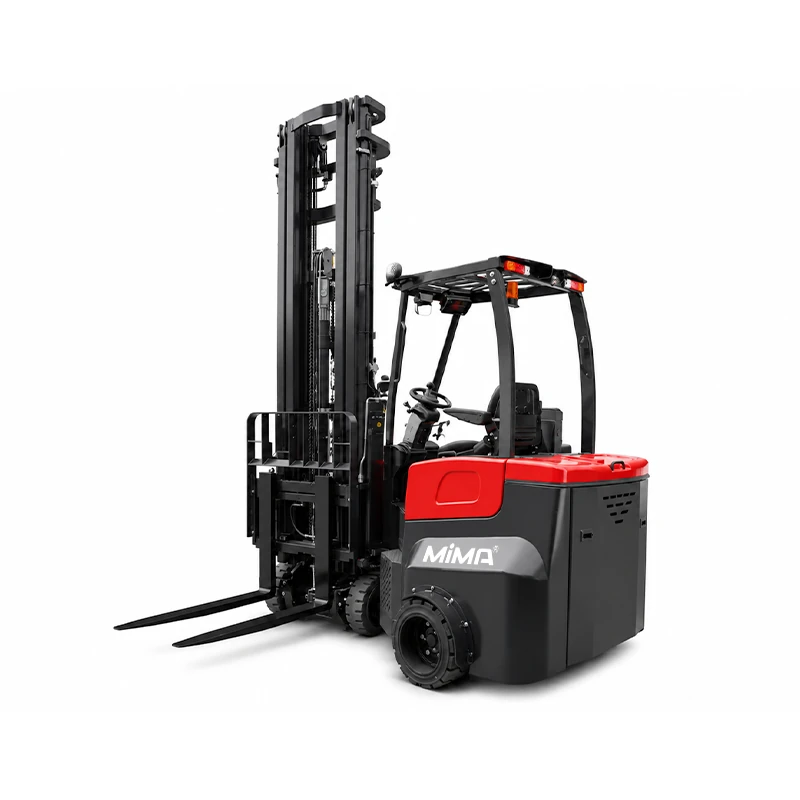

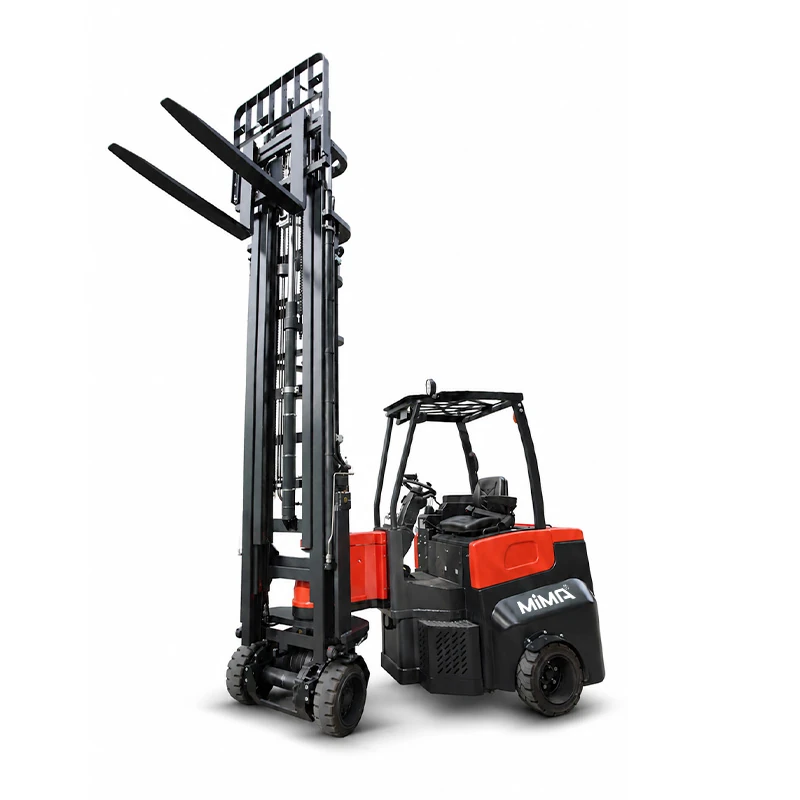

3.0T Electric Articulated Forklift for One-stop Handling MJ30
Load Capacity
3,000 kg at 600 mm load centre
Lift Height
4,600–8,000 mm
MJ30 is a 3.0-tonne electric articulated forklift for medium- and heavy-duty pallet handling in narrow-aisle warehouses. Its 210° mast swing enables controlled stacking without turning the complete truck, while solid tyres support indoor and outdoor travel. An 80V full AC system delivers responsive performance for transfer, loading and racking operations.
Ideal For
- Medium- and heavy-duty pallet handling
- Indoor-outdoor transfer and narrow-aisle stacking
- Warehouses requiring 3,000 kg ground-level capacity
Technical Data
| Specification | MJ30 Wide Body |
|---|---|
| Model | MJ30 Wide Body |
| Operation Type | |
| Load Capacity | 3,000 kg at 600 mm load centre |
| Lift Height | 4,600–8,000 mm |
| Mast Type | Triple Mast |
| Fork Outside Spread | 380–890 mm |
| Aisle Width | From 2,300 mm* |
| Battery Spec | 80V/500Ah lead-acid or 80V/460Ah lithium |
Product Description
Heavy-duty Articulated Handling
The MiMA MJ30 combines a 3,000 kg rated capacity with articulated VNA forklift manoeuvrability. It is designed for heavier pallet transport, loading and high-density warehouse storage.
One Truck from Yard to Rack
The MJ30 can collect loads outdoors, travel into the warehouse and place pallets directly into narrow-aisle racking. This reduces handling stages and the need to transfer loads between different trucks.
210° Mast Swing
The articulated mast turns through 210°, allowing the truck body to remain within the aisle while the forks face the rack. The truck can operate in clear aisles from 2,300 mm with the specified pallet.
80V Full AC Performance
An 80V full AC drive and lift system provides responsive acceleration, controlled load handling and reduced routine motor maintenance. Lead-acid and lithium battery configurations are available for different shift requirements.
Operator Control and Visibility
A seated driving position, adjustable controls and wide-view mast help the operator monitor the truck, load and racking. Controlled steering and speed-management functions support predictable manoeuvring in restricted areas.
Built for Daily Maintenance
Accessible covers and grouped service points simplify routine inspection and scheduled maintenance. Solid tyres support operation on suitable indoor floors and prepared outdoor surfaces.
Frequently Asked Questions
Q1: What is the main difference between the MJ20 and MJ30?
The MJ30 provides a 3,000 kg rated capacity for heavier pallets, while the MJ20 is rated at 2,000 kg and offers narrower body options. The MJ30 consequently requires more aisle space.
Q2: What is the minimum aisle width for the MJ30?
The specified clear aisle width starts from 2,300 mm with an 800 × 1,200 mm pallet. This is measured between loads. Rack-to-rack width should normally include at least 200 mm additional clearance.
Q3: Can the MJ30 work outdoors and then stack indoors?
Yes. It can collect or transport pallets on suitable outdoor surfaces and continue into the warehouse for narrow-aisle stacking. Surface condition, gradients, doorway dimensions and weather exposure must be assessed.
Q4: Does the MJ30 retain 3,000 kg capacity at 8,000 mm?
No. The rated capacity does not automatically apply at maximum lift height. Residual capacity depends on lift height, load centre, mast configuration and attachments. The applicable load chart must be confirmed before selection.
Q5: Can the MJ30 replace a counterbalance truck and a reach truck?
It can perform both transfer and narrow-aisle stacking in suitable applications. Replacement feasibility depends on travel distance, surface quality, load dimensions, lift height and required handling rate.
Q6: What battery options are available?
The MJ30 is available with an 80V/500Ah lead-acid battery or an 80V/460Ah lithium battery. Battery choice should reflect shift duration, charging arrangements and daily utilisation.
Q7: Is the MJ30 suitable for uneven yards?
The truck is intended for suitable prepared surfaces. Significant potholes, steep transitions, loose surfaces, drainage channels or uneven loading areas should be reviewed before specifying the truck.
Q8: What information should a dealer collect before quoting?
Confirm maximum load, load centre, pallet dimensions, required lift height, clear aisle width, rack spacing, floor condition, doorway clearances, gradients and expected operating hours.
