Integrated controls enable easy, precise and comfortable maneuvering.
Electric Pallet Stacker

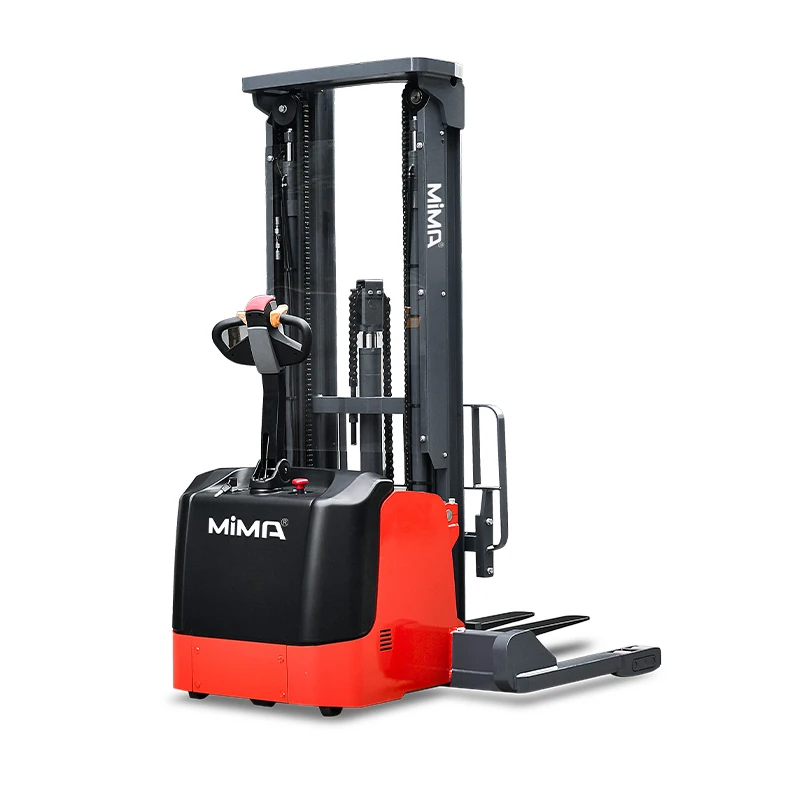

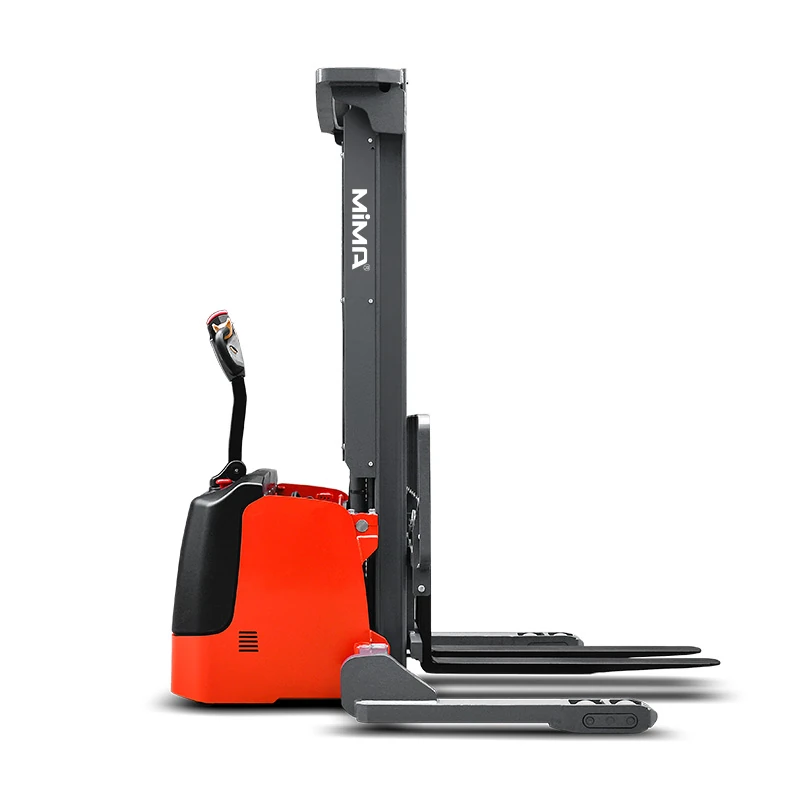

2.0T Walkie Straddle Electric Pallet Stacker MBF20
Load Capacity
2,000 kg
Lift Height
4,000–5,500 mm
MBF20 is a 2.0-tonne walkie straddle electric pallet stacker designed for double-sided pallets and lift heights up to 5.5 metres. Adjustable support legs and forged adjustable forks accommodate different pallet widths, while the triplex full-free mast, five-point chassis, electric steering and configurable battery options support controlled handling in warehouses, factories and loading areas.
Ideal For
- Double-sided and closed-bottom pallet handling
- Indoor stacking with adjustable straddle width
- Applications requiring full-free lift up to 5.5 metres
Product Highlights

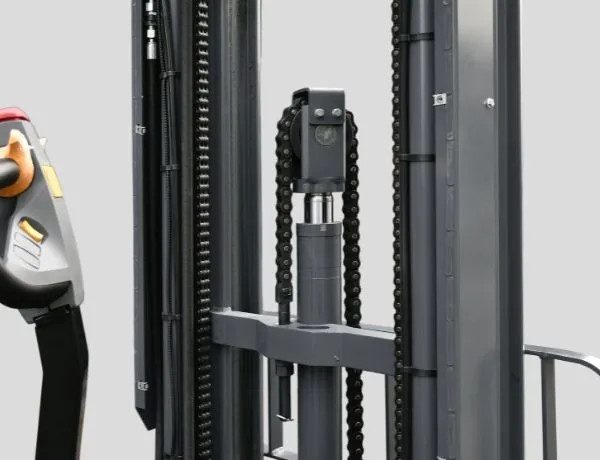

Stable mast design provides smooth lifting and reliable stability during stacking operations.
Technical Data
| Specification | MBF20 |
|---|---|
| Model | MBF20 |
| Operation Type | |
| Load Capacity | 2,000 kg |
| Lift Height | 4,000–5,500 mm |
| Mast Type | Duplex Mast, Triple Mast |
| Fork Outside Spread | 200–787 mm |
| Aisle Width | 2,475 mm with 1,000 × 1,200 mm pallet |
| Battery Spec | 24V/280Ah lead-acid; 24V/200–300Ah lithium optional |
Product Description

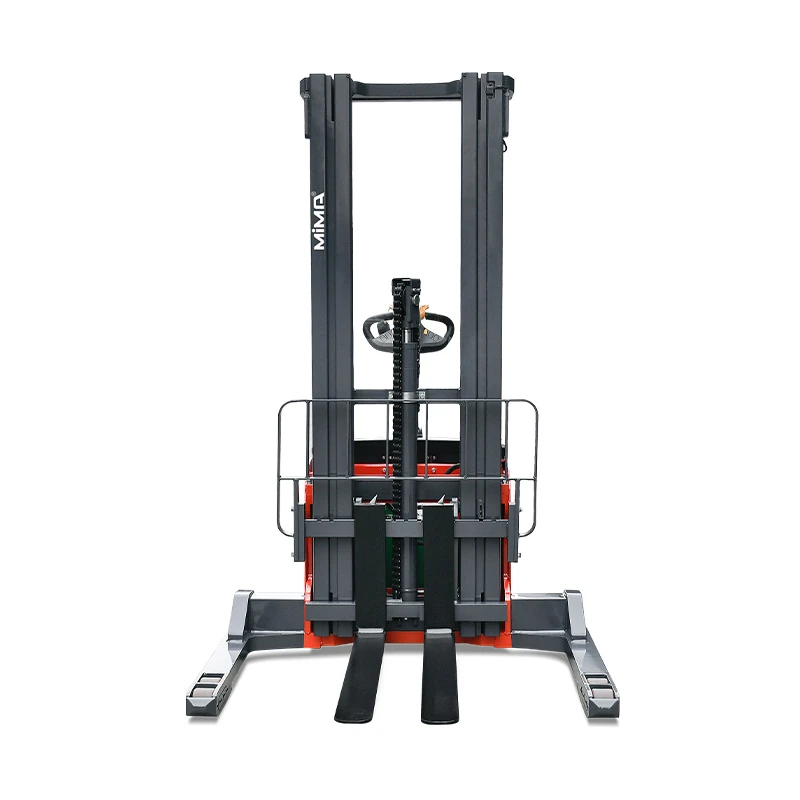

Straddle-Leg Pallet Handling
The MBF20 uses wide support legs positioned outside the pallet. This allows the forged forks to handle double-sided and closed-bottom pallets without placing load wheels beneath the load.

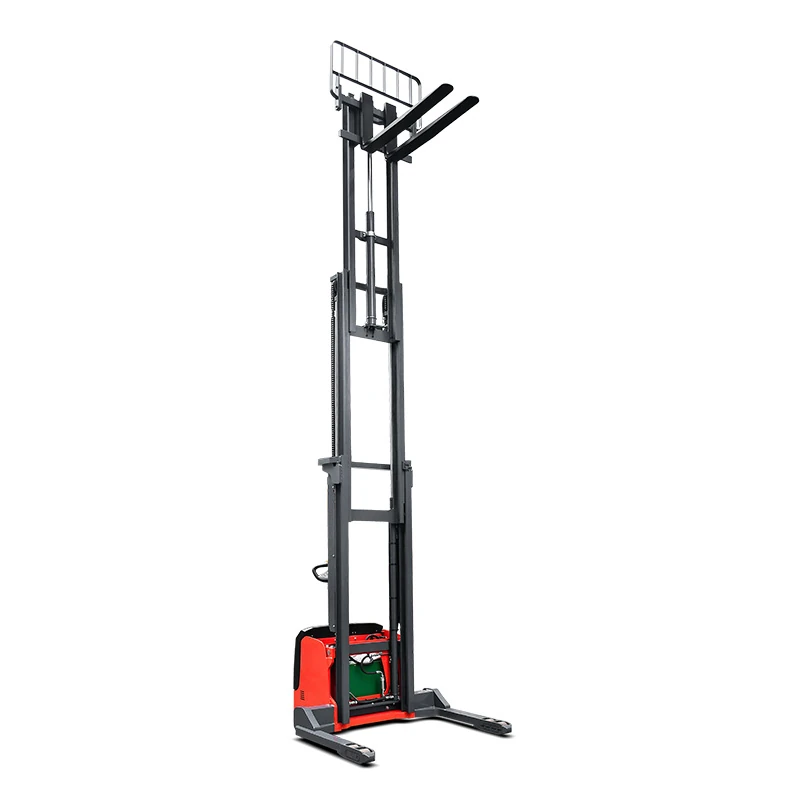

Triplex Full-Free Mast
Available lift heights range from 4.0 to 5.5 metres. Full-free lift supports operation beneath lower ceilings, doorways and overhead structures before the mast extends.
Adjustable Fork and Leg Geometry
Fork outside spread adjusts from 200 to 787 mm. Support-leg width is selected according to pallet dimensions and must provide suitable clearance throughout the handling cycle.
Stable Walkie Operation
A five-point chassis supports stability, while electric steering reduces tiller effort. The walkie layout is intended for controlled short-distance transport and stacking.
Battery and Attachment Options
The standard battery is 24V/280Ah lead-acid. Lithium options are available, and side shift, fork positioners or clamps may be evaluated for specific loads.
Frequently Asked Questions
Q1: What pallets can the MBF20 handle?
Its straddle-leg design is suitable for many double-sided and closed-bottom pallets. Pallet width, bottom-board clearance and support-leg spacing must be confirmed.
Q2: Does it retain 2,000 kg capacity at 5.5 metres?
The rated capacity applies under defined load-centre conditions. Residual capacity at higher lift positions must be checked against the mast load chart.
Q3: Why is full-free lift useful?
It allows the forks to rise while the mast remains within its closed height, helping inside low-clearance areas such as doorways or trailers.
Q4: Can the support-leg width be adjusted?
The truck can be configured for different support-leg widths. The required pallet dimensions should be provided before production.
Q5: Can attachments be fitted?
Side shift, fork positioning and selected clamps may be available, subject to technical evaluation and revised residual-capacity calculations.
