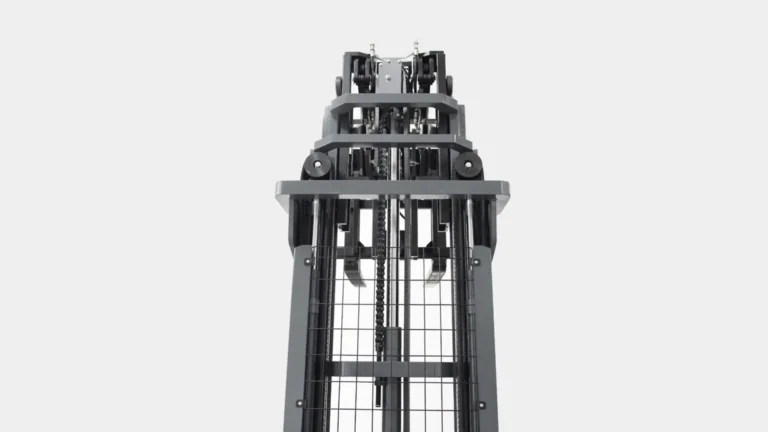

Stable mast design provides reliable support and smooth lifting performance. Scissor Reach Mechanism
Electric Pallet Stacker

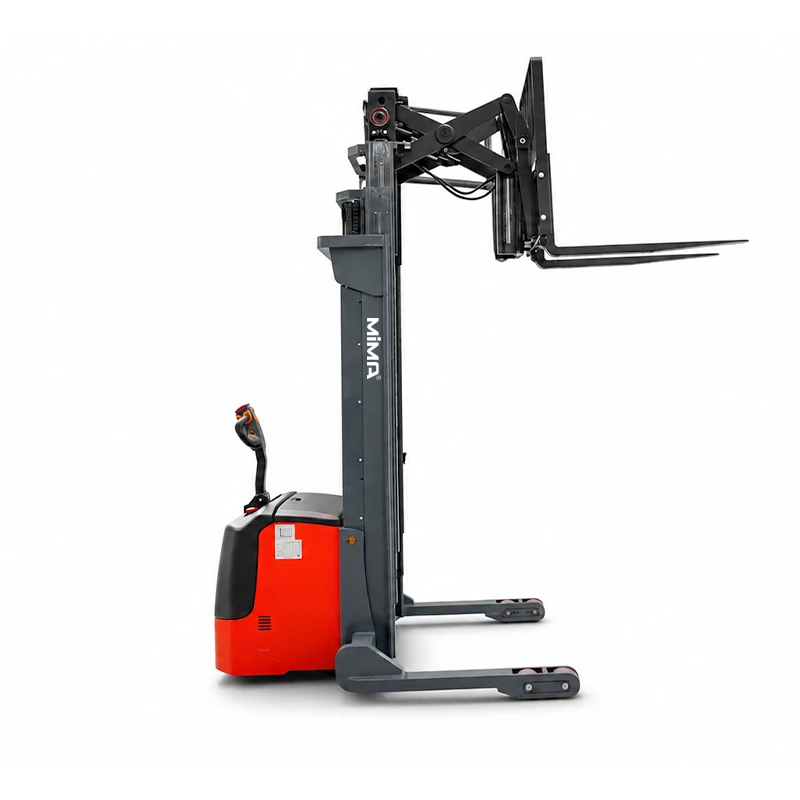

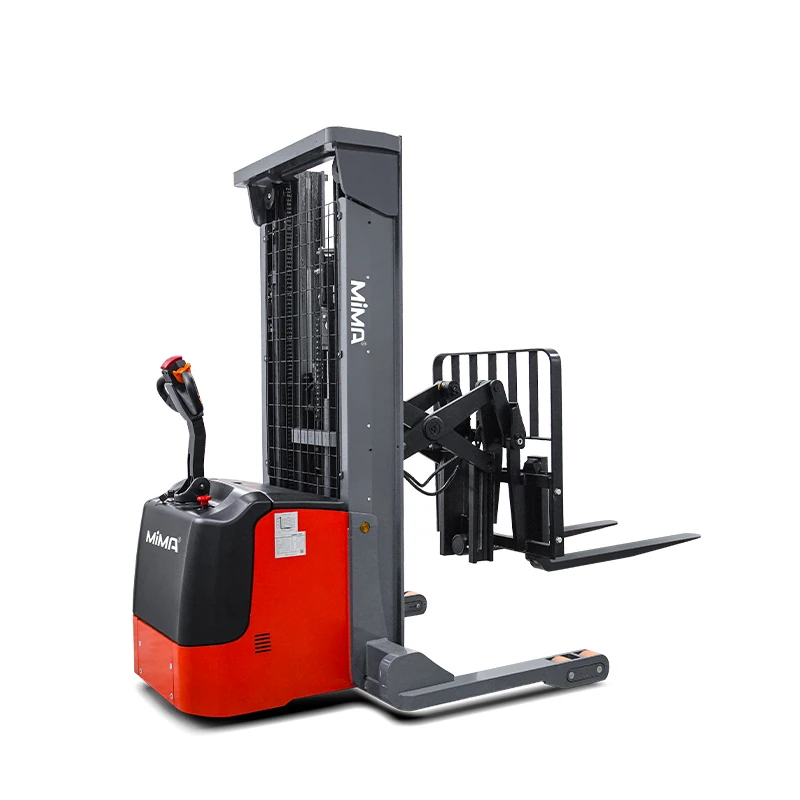

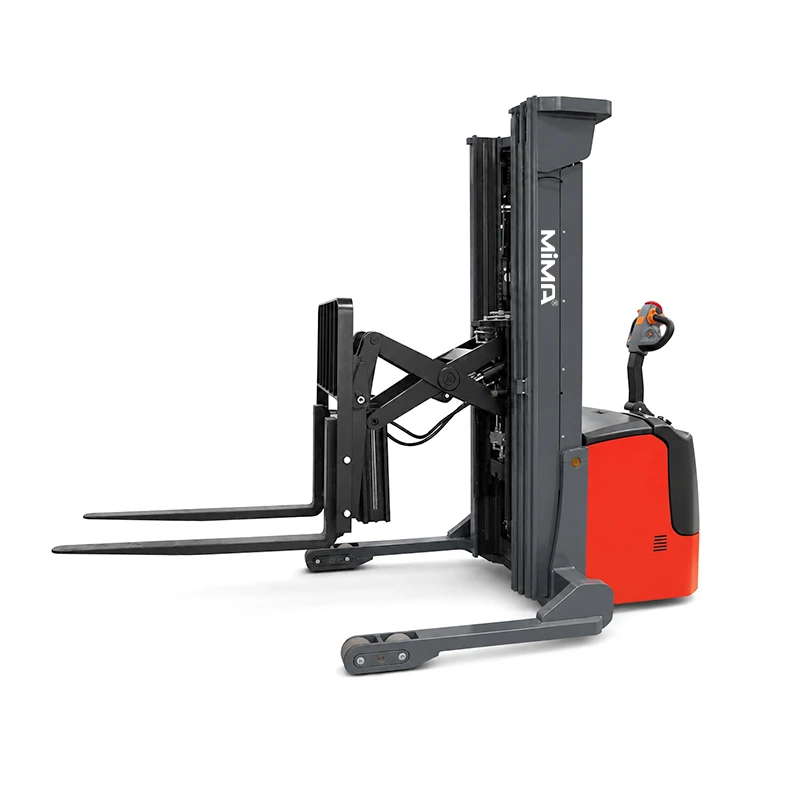

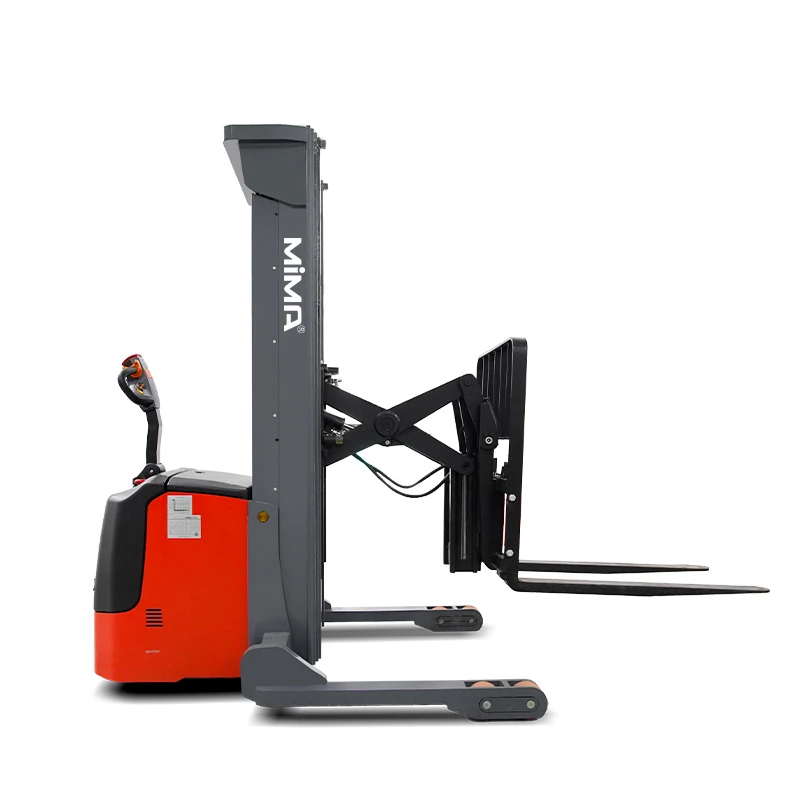

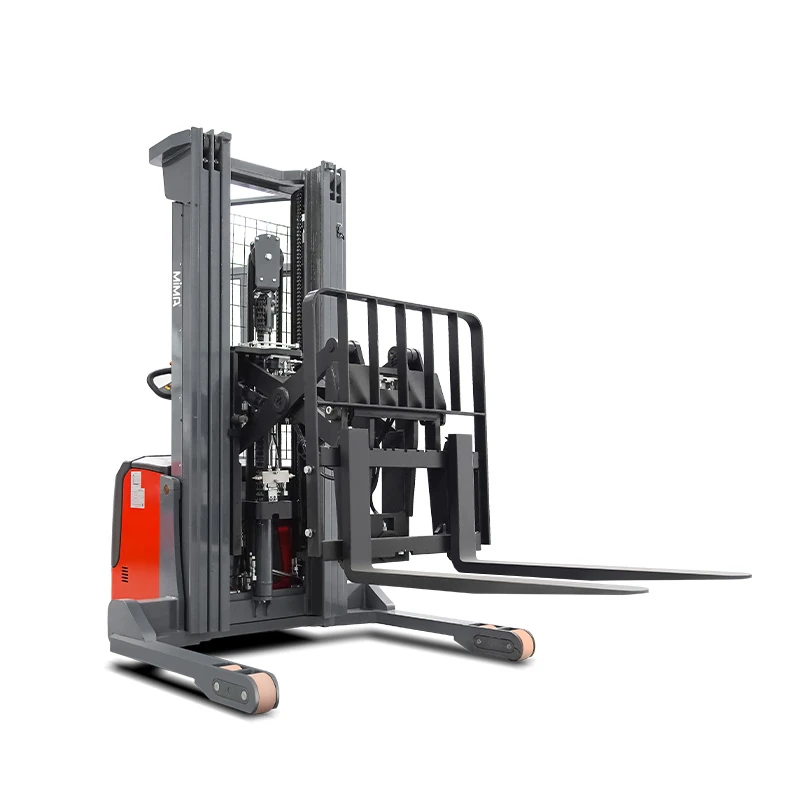

1.6T Walkie Pantograph Electric Reach Stacker MBG16
Load Capacity
1,600 kg
Lift Height
3,600–5,000 mm
MBG16 is a 1.6-tonne walkie pantograph electric reach stacker for deep racking and double-sided pallets. Its single-scissor reach mechanism extends the forks by 585 mm, while fork tilt, adjustable support legs and a triplex full-free mast support precise load access. Electric proportional hydraulics and power steering improve control during indoor stacking and retrieval.
Ideal For
- Deep-racking pallet retrieval
- Double-sided and closed-bottom pallets
- Indoor stacking where forward reach is required
Product Highlights
Scissor-type reach structure extends the forks forward for flexible pallet handling and improved reach capability.

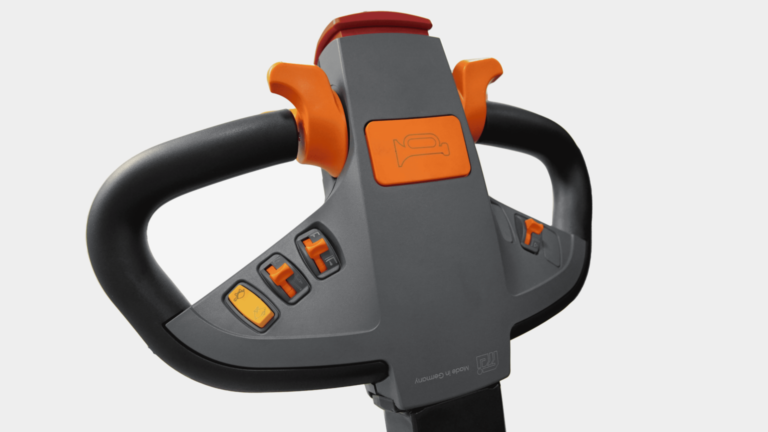

Intuitive controls provide comfortable and precise operation for daily handling tasks.
Technical Data
| Specification | MBG16 |
|---|---|
| Model | MBG16 |
| Operation Type | |
| Load Capacity | 1,600 kg |
| Lift Height | 3,600–5,000 mm |
| Mast Type | Triple Mast |
| Fork Outside Spread | 320–872 mm |
| Aisle Width | 2,823 mm with 1,000 × 1,200 mm pallet |
| Battery Spec | 24V/350Ah lead-acid; 24V/200–300Ah lithium optional |
Product Description
Pantograph Reach for Deep Racking
The MBG16 combines a walkie pallet stacker with a single-scissor pantograph. The forks extend 585 mm beyond the support-leg line, allowing access to deep pallet positions.
Adjustable Pallet Interface
Fork outside spread adjusts from 320 to 872 mm, while support-leg width can be configured for different pallet dimensions. The truck is suited to approved double-sided pallets.
Triplex Full-Free Mast
Lift heights from 3.6 to 5.0 metres are available. The full-free-lift mast supports operation where overhead clearance is limited.
Proportional Hydraulic Control
Electric proportional reach and standard fork tilt support smoother pallet positioning. Side shift or fork positioning can be specified where required.
Stable Electric Operation
The three-point chassis, high-strength mast structure and electric steering support controlled handling. Battery capacity should be selected according to lift cycles, reach cycles and travel distance.
Frequently Asked Questions
Q1: How far can the MBG16 reach forwards?
The pantograph mechanism provides approximately 585 mm of forward reach.
Q2: Is it suitable for double-deep racking?
It is designed for deep-position access, but rack depth, pallet orientation, beam clearance and residual capacity must be checked for the specific layout.
Q3: Does capacity reduce when the forks are extended?
Yes. Capacity depends on lift height, reach position, load centre, mast and attachments. Use the approved load chart for each operating position.
Q4: Are side shift and fork positioning available?
Side shift is optional, and fork positioning can be evaluated. These functions may affect residual capacity and overall fork-carriage dimensions.
Q5: How much aisle width is required?
The datasheet specifies 2,823 mm with a 1,000 × 1,200 mm pallet. Rack clearance and operating tolerance should be added during layout planning.
