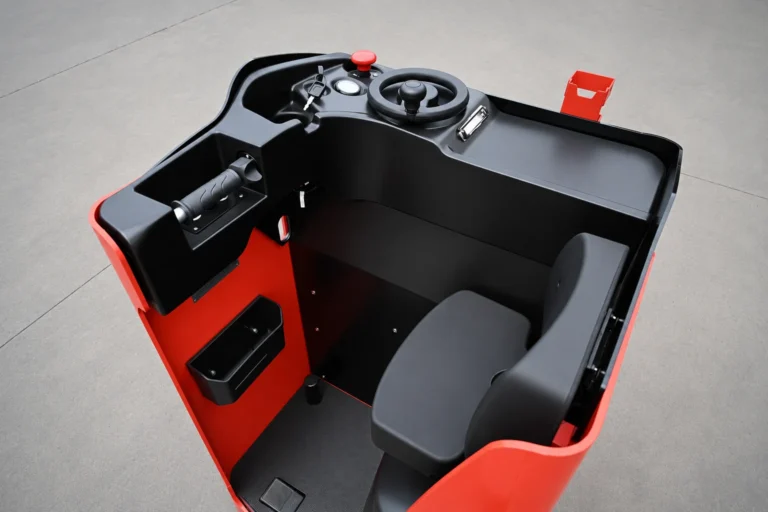

Comfortable seating and intuitive controls help reduce operator fatigue during medium- and long-distance transport.
Electric Pallet Truck

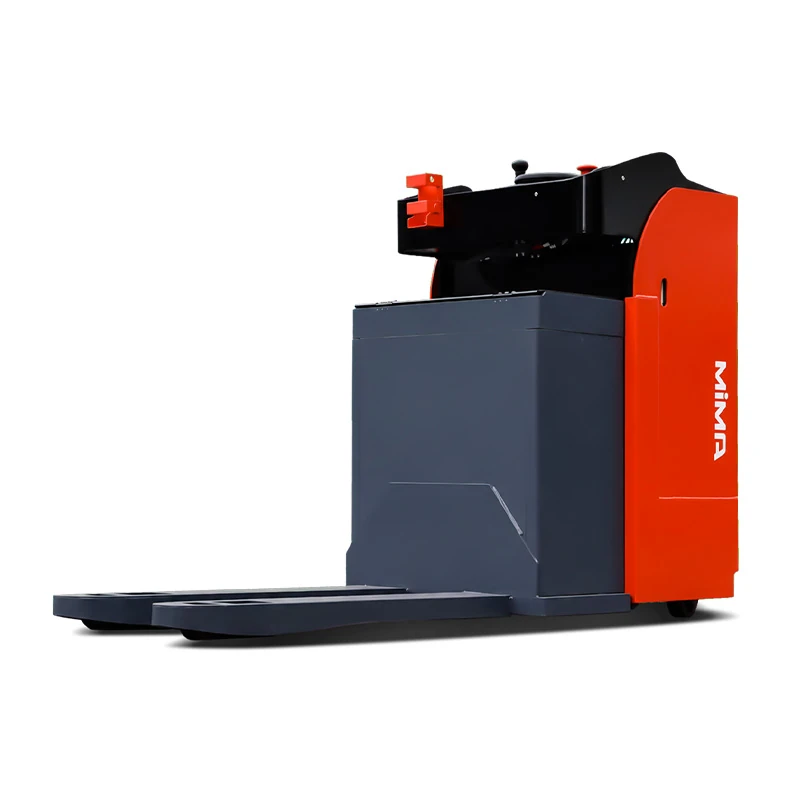

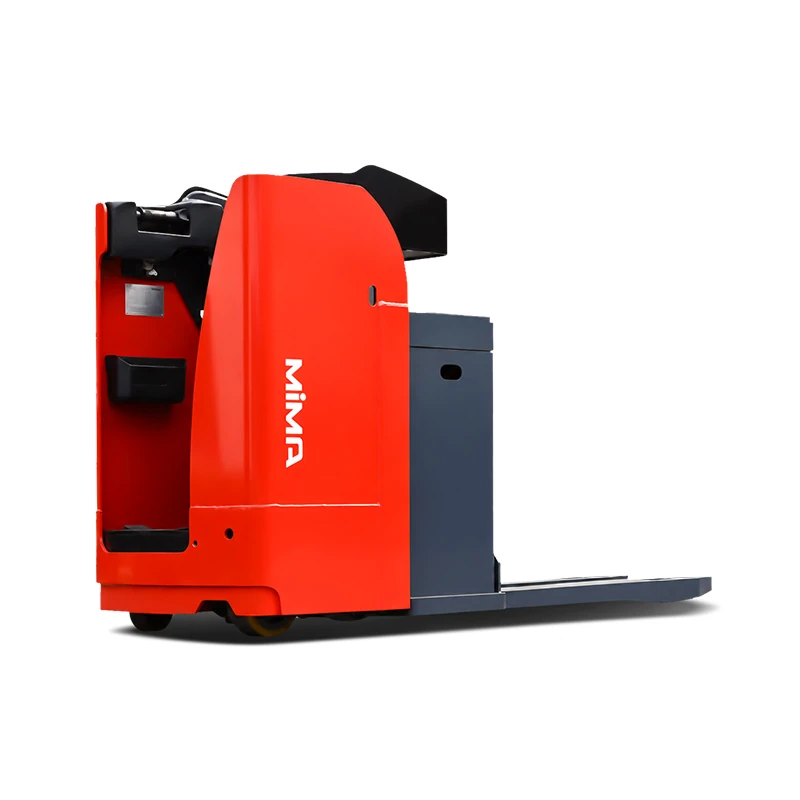

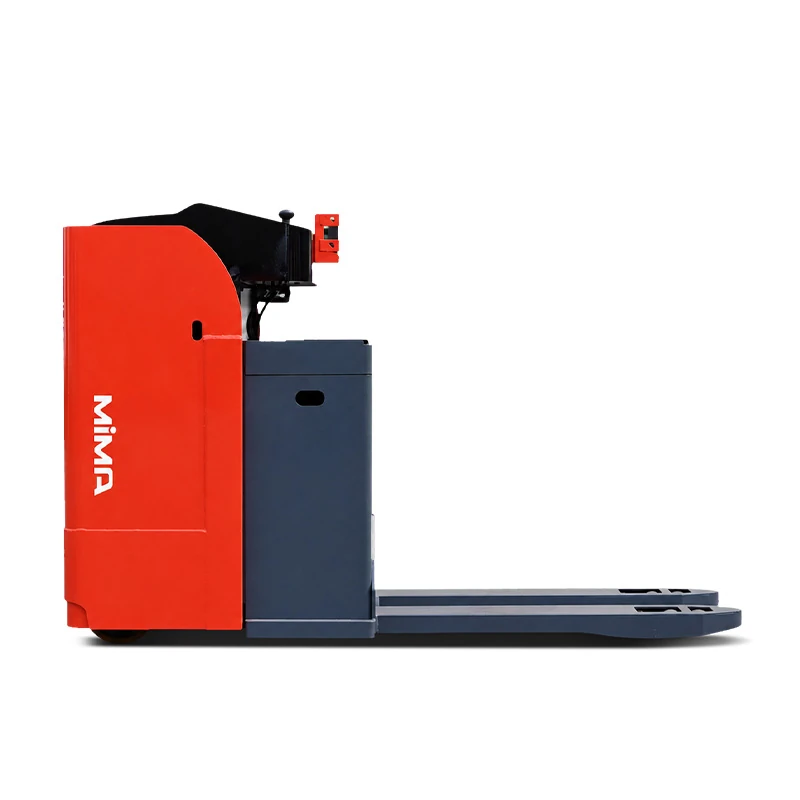

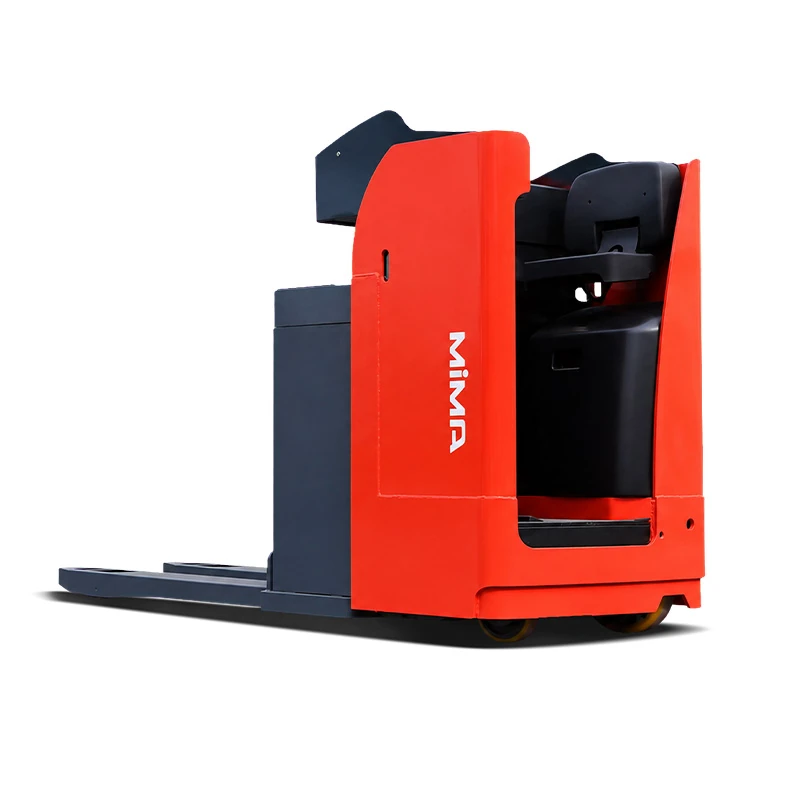

2.0T Stand-on/Seated Electric Pallet Truck MEB20
Load Capacity
2,000 kg
Lift Height
120 mm
MEB20 is a 2.0-tonne electric pallet truck designed for medium-to-long-distance horizontal transport. Its rigid four-point chassis and stand-on/seated operating arrangement support stable, comfortable travel during repeated pallet movements. Electric steering, AC drive and a 24V high-capacity battery system make it suitable for logistics, manufacturing, cold-chain and busy warehouse applications.
Ideal For
- Medium-to-long-distance pallet movement
- Logistics, manufacturing and cold-chain facilities
- Repeated transport where operator seating reduces fatigue
Product Highlights

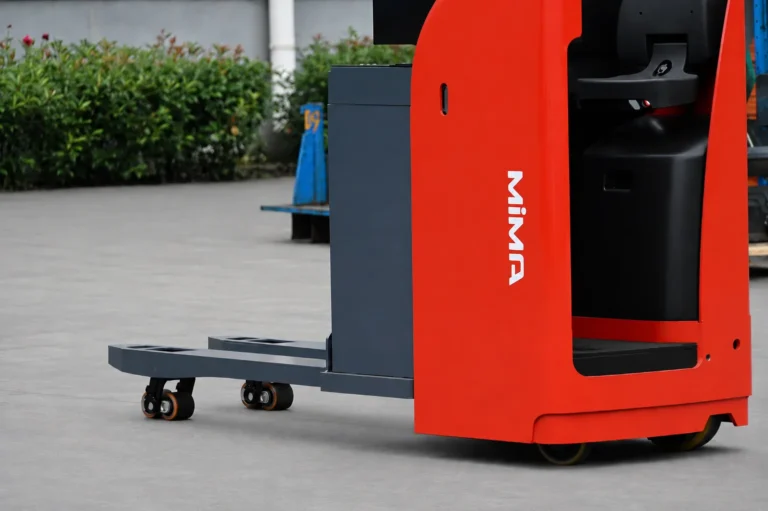

Rigid four-point structure provides excellent stability and smooth travel during heavy-duty handling.
Technical Data
| Specification | MEB20 |
|---|---|
| Model | MEB20 |
| Operation Type | |
| Load Capacity | 2,000 kg |
| Lift Height | 120 mm |
| Mast Type | |
| Fork Outside Spread | 510 / 540 / 680 mm |
| Aisle Width | 2,160 mm with 1,000 × 1,200 mm pallet |
| Battery Spec | 24V/400Ah lead-acid; 24V/300Ah lithium |
Product Description
Pallet Transport Over Longer Routes
The MEB20 is designed for repeated horizontal pallet movement across warehouses, production facilities and logistics centres. Its 2,000 kg capacity covers common medium- and heavy-pallet applications.
Stand-on and Seated Operation
The operator area supports stand-on or seated travel according to route length and work pattern. The arrangement can reduce fatigue when pallet movement involves repeated longer runs.
Four-Point Stability
A rigid four-point chassis provides stable support during travel and turning. Pallet condition, load distribution and floor quality remain important when operating at rated capacity.
AC Drive and Electric Steering
Brushless AC traction supports efficient operation with reduced routine motor maintenance. Electric steering lowers effort during manoeuvring and repeated pallet positioning.
High-Capacity Battery System
The standard 24V/400Ah lead-acid battery supports extended daily use. A 24V/300Ah lithium battery is available for opportunity charging and lower routine battery maintenance.
Frequently Asked Questions
Q1: Is the MEB20 a seated or stand-on pallet truck?
It supports both operating postures. The final seat and operator-area configuration should be confirmed when ordering.
Q2: When is MEB20 preferable to ME20?
MEB20 is better suited to longer travel routes, higher daily utilisation and operations where a seated driving position can reduce operator fatigue.
Q3: Which pallet widths can it handle?
Standard fork outside spreads include 510, 540 and 680 mm. The pallet pocket dimensions must be checked before selecting the fork configuration.
Q4: What battery options are available?
The standard specification is 24V/400Ah lead-acid. A 24V/300Ah lithium battery can be selected for opportunity charging and reduced maintenance.
Q5: Can the MEB20 be used in cold storage?
A cold-store configuration may be possible, but battery performance, seals, electrical protection, lubricants and condensation management must be evaluated.
