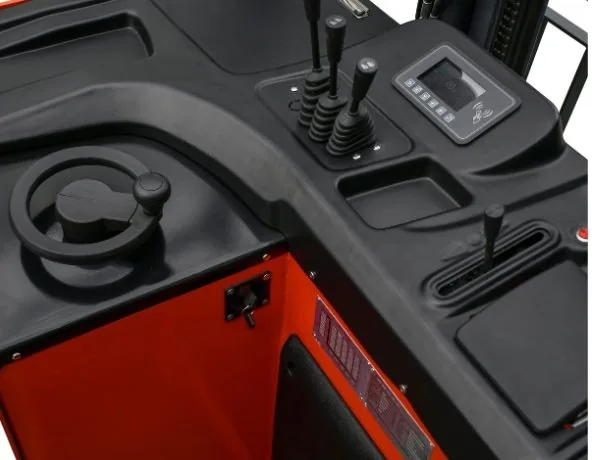

EPS reduces steering effort during frequent travel and pallet positioning.
Electric Reach Truck

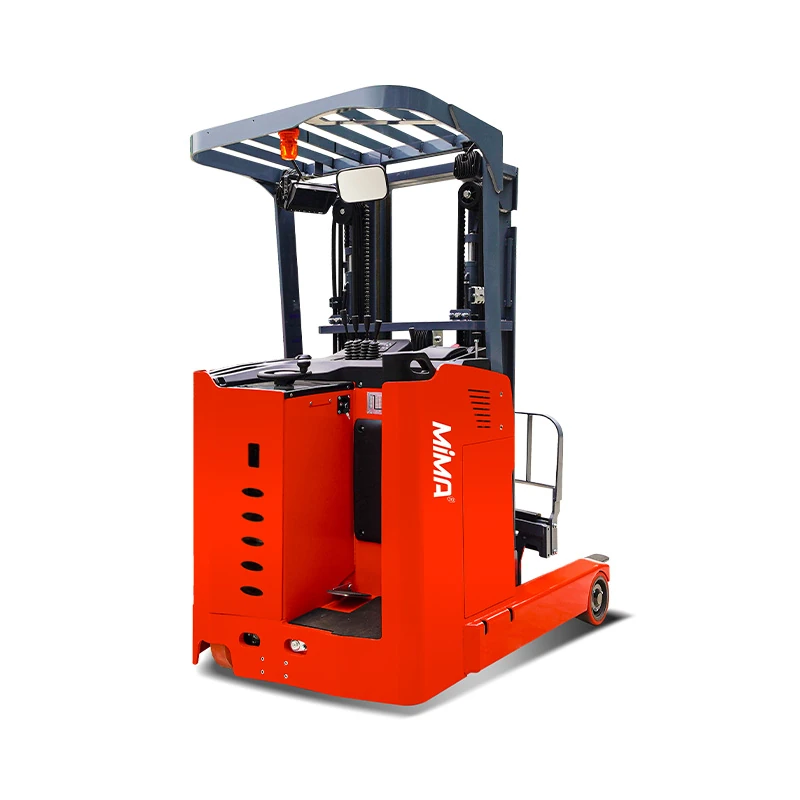

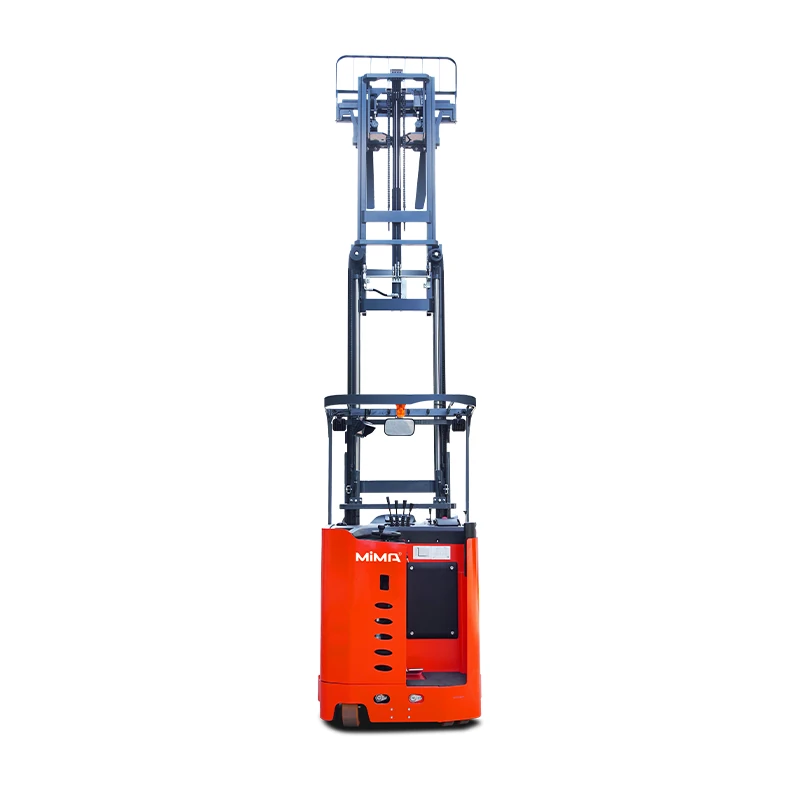

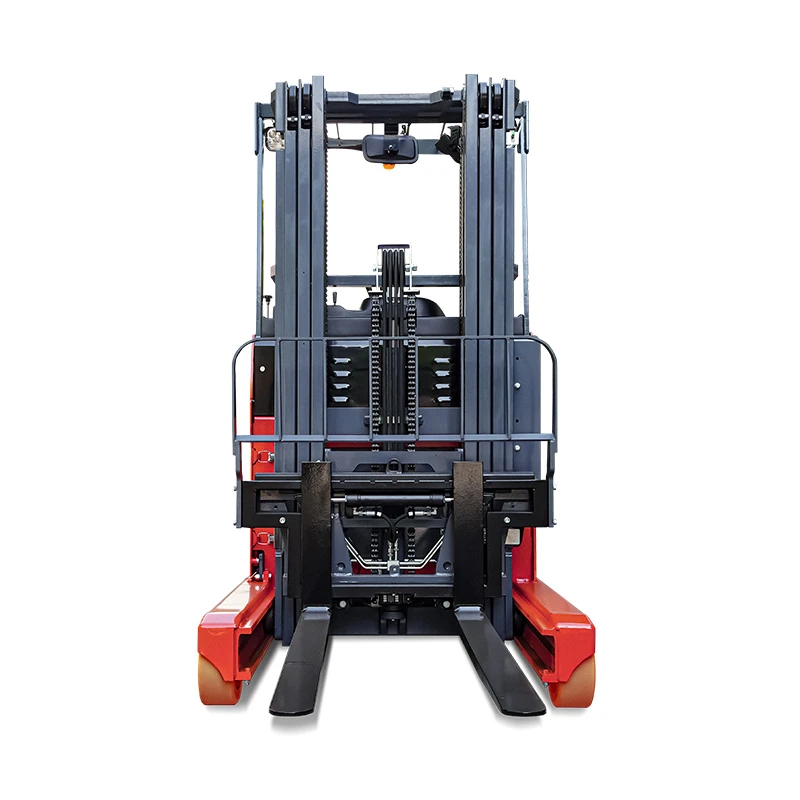

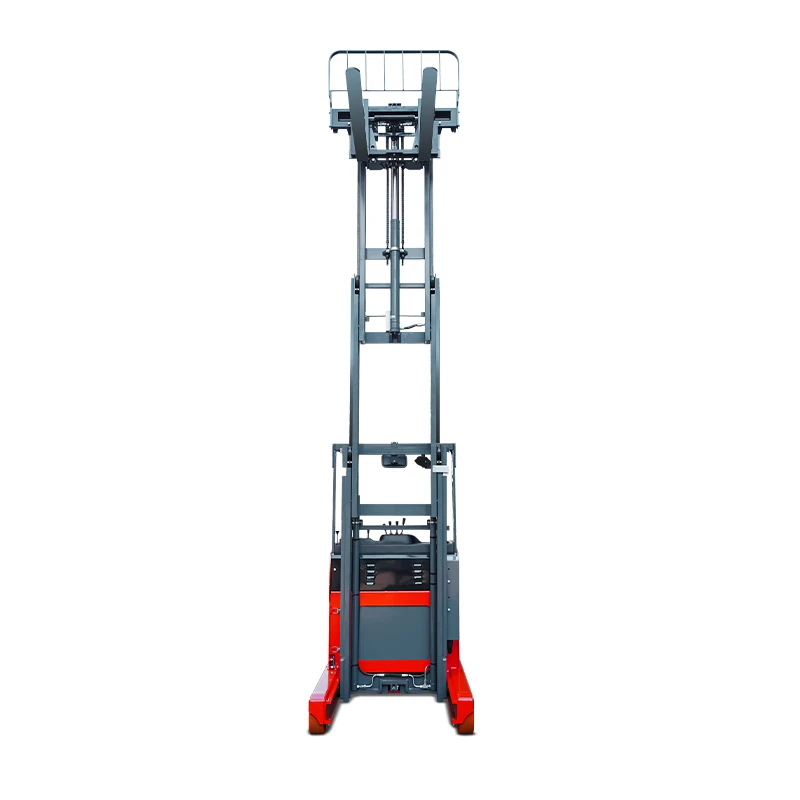

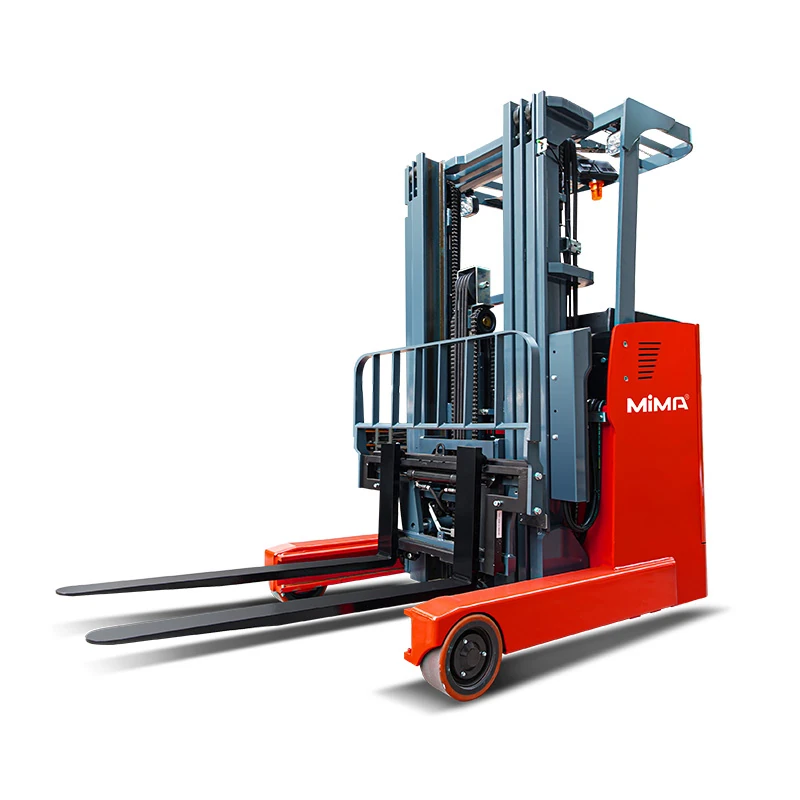

1.2–1.5T Stand-on Electric Reach Truck MF12/15
Load Capacity
1,200 kg
Lift Height
3,000–6,000 mm
MF12/15 is a compact stand-on electric reach truck range with 1,200 or 1,500 kg capacity and lift heights up to 7,500 mm. A retractable mast, electric power steering and automatic cornering speed reduction support controlled pallet handling in narrow warehouse aisles, while the standing platform suits frequent travel, stacking and order-transfer cycles.
Ideal For
- Narrow-aisle pallet storage and retrieval
- Warehouses with frequent travel and stacking cycles
- Distribution, manufacturing and general indoor logistics
Product Highlights

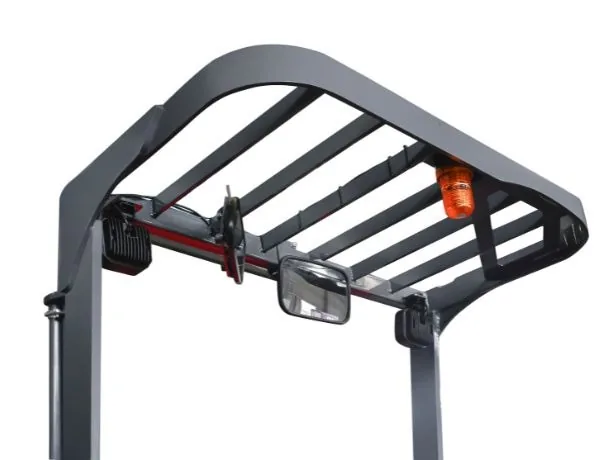

Retractable mast and small turning radius reduce right-angle stacking space.

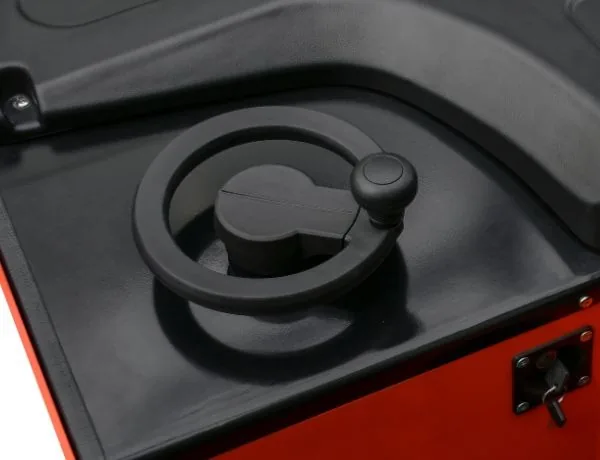

Automatic speed reduction improves load stability when the truck turns.
Technical Data
| Specification | MF12 | MF15 |
|---|---|---|
| Model | MF12 | MF15 |
| Operation Type | ||
| Load Capacity | 1,200 kg | 1,500 kg |
| Lift Height | 3,000–6,000 mm | 3,000–7,500 mm |
| Mast Type | Duplex Mast, Triple Mast | Duplex Mast, Triple Mast |
| Fork Outside Spread | 222–750 mm | 222–650 mm Duplex; 222–750 mm Triplex |
| Aisle Width | 2,502–2,521 mm | 2,663–2,682 mm |
| Battery Spec | 24V/350Ah lead-acid; 24V/200Ah lithium optional | 48V/300Ah lead-acid; 48V/230Ah lithium optional |
Product Description
Compact Stand-on Reach Truck
The MF12/15 electric reach truck combines a compact chassis with a standing operator platform. It is suited to frequent pallet movements where operators regularly change travel direction or enter and leave the truck.
Retractable Mast for Narrow Aisles
The mast moves forwards to place the pallet and retracts within the support arms for travel. This reduces the truck’s effective stacking space while maintaining controlled load support.
Electric Steering and AC Drive
Electric power steering reduces steering effort during repetitive operations. The AC drive system provides responsive acceleration and requires no routine carbon-brush replacement.
Controlled Travel and Braking
Automatic cornering speed reduction helps stabilise the truck and load during turns. Mechanical disc braking provides predictable stopping performance in indoor warehouse applications.
Mast and Battery Options
Duplex and triplex full-free mast configurations cover lift heights from 3,000 to 7,500 mm, depending on model. Lead-acid batteries are standard, with lithium options available for opportunity-charging applications.
Frequently Asked Questions
Q1: What is the main difference between the MF12 and MF15?
The MF12 has a 1,200 kg rated capacity and a more compact aisle requirement. The MF15 increases capacity to 1,500 kg and supports lift heights up to 7,500 mm.
Q2: How much aisle width is required?
The published values start from 2,502 mm for the MF12 and 2,663 mm for the MF15, based on a specified pallet orientation. Final clearance must consider the pallet, load overhang, mast, battery compartment, side shift and warehouse safety allowance.
Q3: Can the truck carry its rated capacity at maximum lift height?
Not necessarily. Residual capacity decreases as lift height, load centre and attachment weight increase. The relevant load chart must be checked before confirming a high-level application.
Q4: Can a side shifter be installed?
Yes, depending on the selected configuration. A side shifter improves pallet positioning but may increase the required aisle width and reduce the mast’s forward reach.
Q5: Are these trucks suitable for outdoor use?
They are primarily designed for indoor operation on level, clean floors. Outdoor use should be limited to suitable surfaces and environmental conditions confirmed during application assessment.
