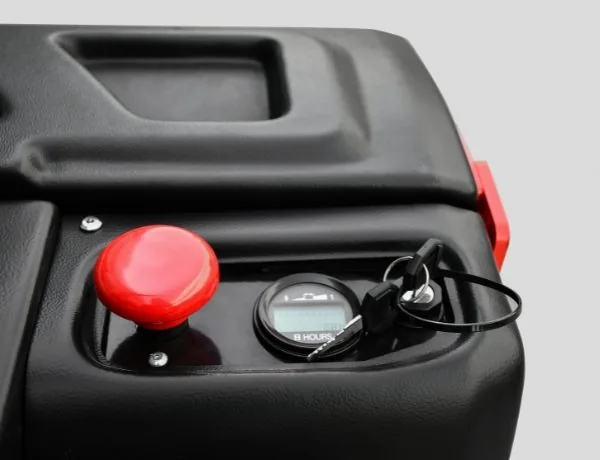

Records operating hours for convenient maintenance and service planning.
Electric Pallet Truck

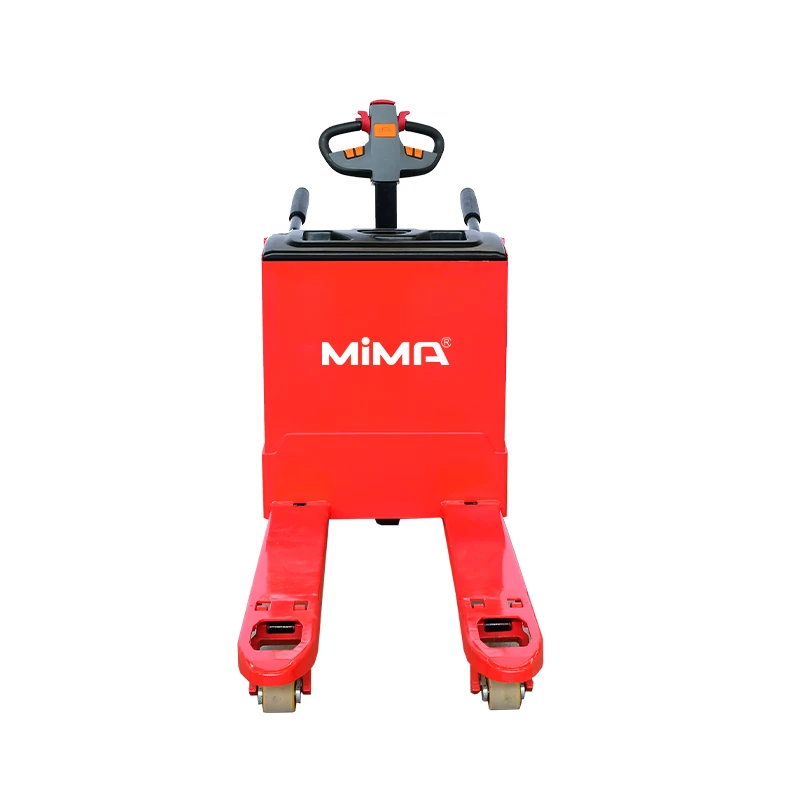

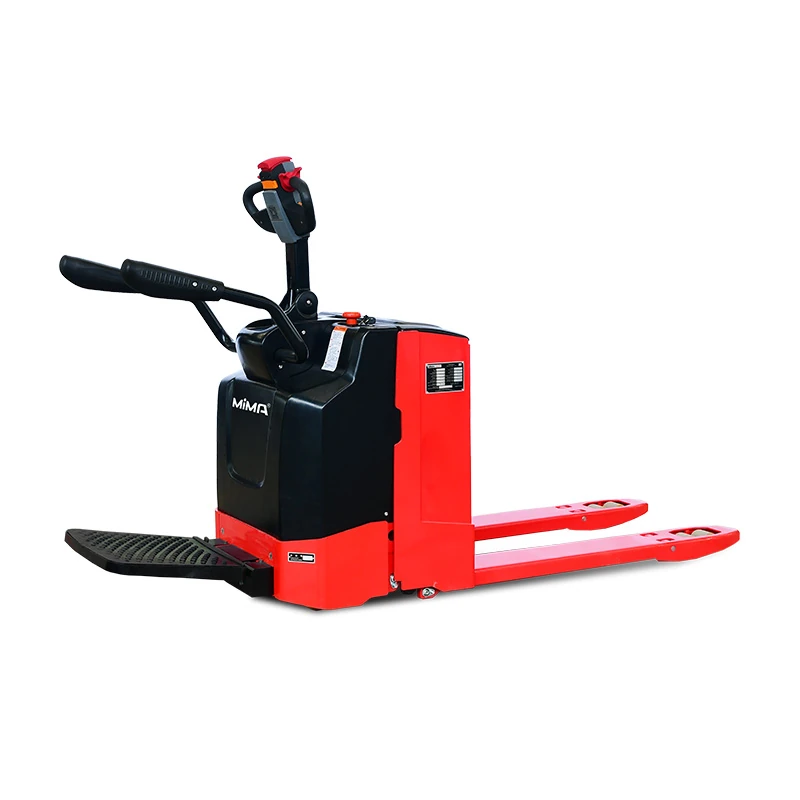

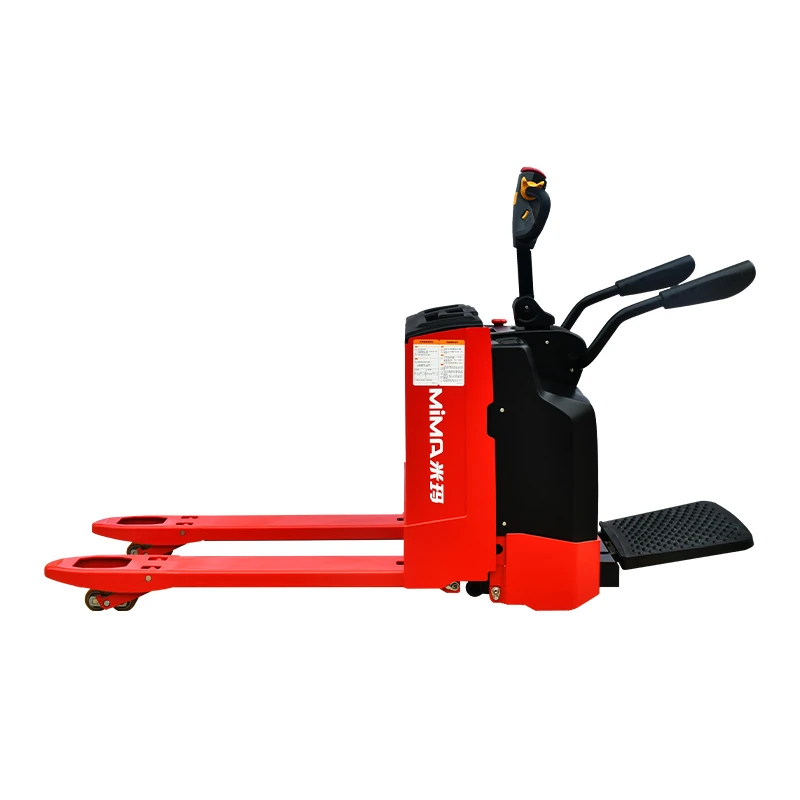

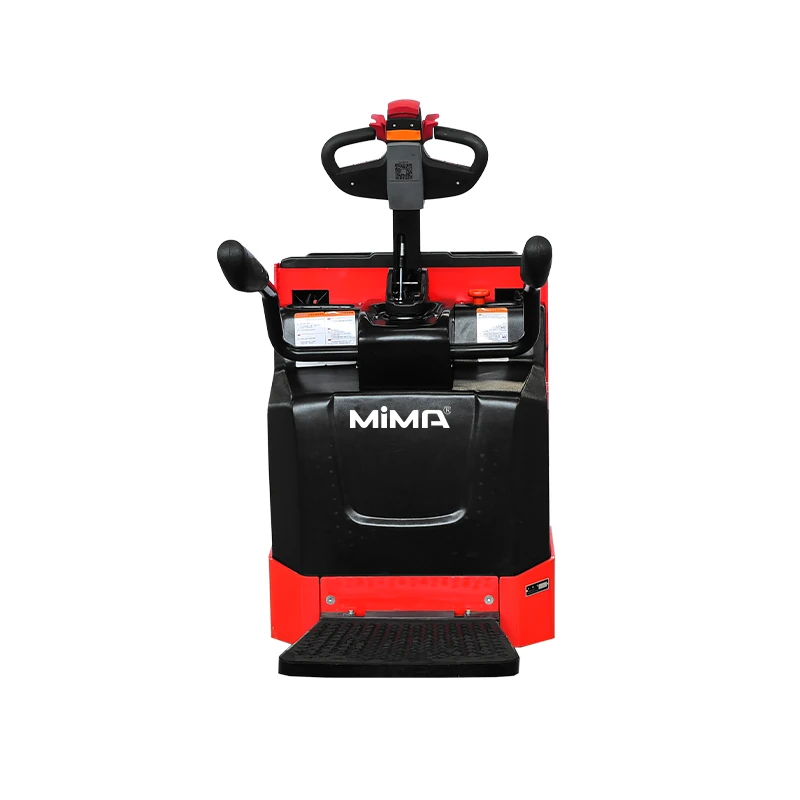

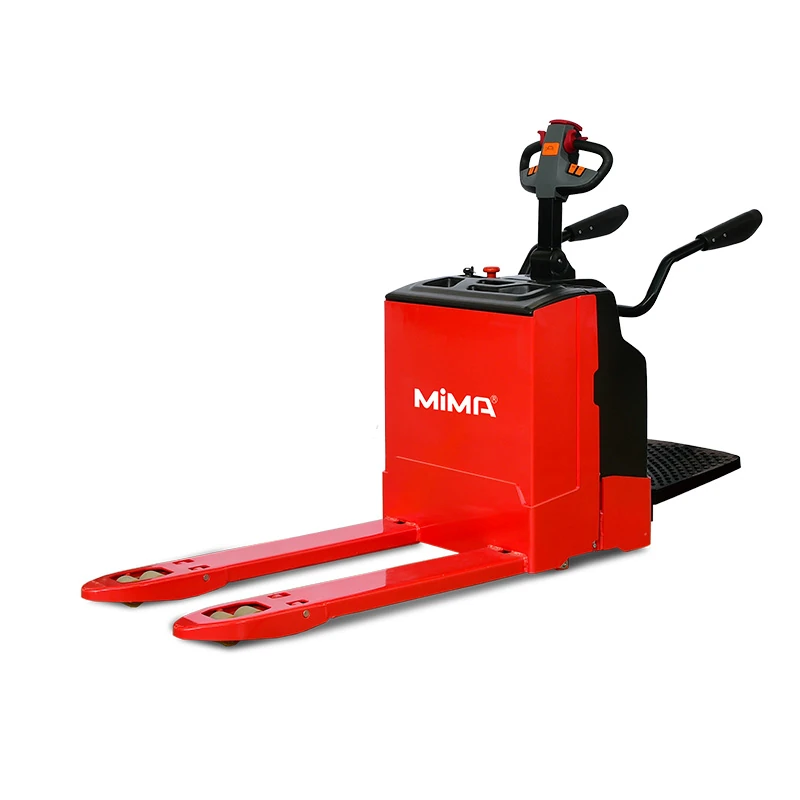

2.0-2.5T Stand-on Electric Pallet Truck ME20/25
Load Capacity
2,000 kg
Lift Height
200 mm
ME20/25 is a stand-on electric pallet truck range for 2,000 and 2,500 kg loads. A compact chassis, folding platform, electric power steering and five-point support help operators move palletised goods efficiently through warehouses and production areas. AC drive and configurable lead-acid or lithium batteries support short-to-medium routes and repeated daily handling.
Ideal For
- Warehouse pallet transport over short-to-medium routes
- Production-line supply and internal logistics
- Operations requiring a compact folding-platform truck
Product Highlights

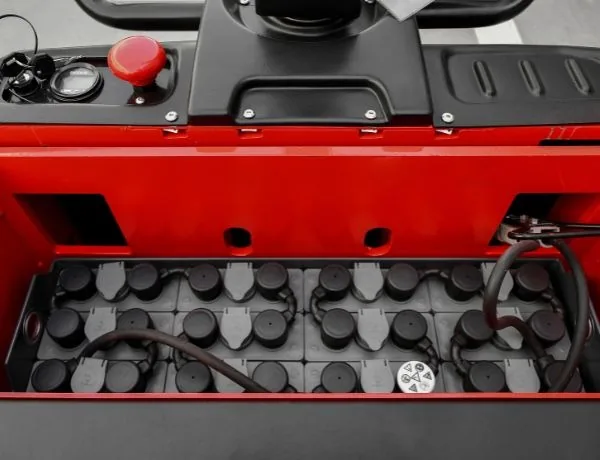

Convenient battery access simplifies routine inspection, replacement and maintenance.
Intuitive tiller controls enable comfortable, precise and efficient operation.
Technical Data
| Specification | ME20 | ME25 |
|---|---|---|
| Model | ME20 | ME25 |
| Operation Type | ||
| Load Capacity | 2,000 kg | 2,500 kg |
| Lift Height | 200 mm | 200 mm |
| Mast Type | ||
| Fork Outside Spread | 680 mm | 680 mm |
| Aisle Width | 2,050 / 2,500 mm, platform folded/deployed | 2,050 / 2,500 mm, platform folded/deployed |
| Battery Spec | 24V/210Ah lead-acid; 24V/150–200Ah lithium optional | 24V/210Ah lead-acid; 24V/150–200Ah lithium optional |
Product Description
Stand-on Pallet Transport
The ME20/25 electric pallet truck range is designed for horizontal pallet movement rather than stacking. The two models share the same compact chassis, with capacity selected according to the heaviest palletised load.
Folding Operator Platform
The platform supports efficient travel between pallet locations and folds when additional manoeuvring space is required. With the platform folded, the specified aisle requirement is approximately 2,050 mm for a 1,000 × 1,200 mm pallet.
Five-Point Chassis Support
Integrated auxiliary wheels support chassis stability, while the suspension arrangement helps maintain drive-wheel contact on suitable indoor floors.
Controlled Electric Operation
AC traction reduces routine drive-motor maintenance. Electric steering, electromagnetic braking, emergency reverse and corner-speed control support predictable handling in busy warehouse areas.
Battery and Fork Options
The standard 24V/210Ah lead-acid battery can be replaced with an application-matched lithium configuration. Fork dimensions, outside spread and battery-change arrangement can be specified according to the pallet and shift pattern.
Frequently Asked Questions
Q1: What is the main difference between ME20 and ME25?
The principal difference is rated capacity: 2,000 kg for ME20 and 2,500 kg for ME25. Their standard operating dimensions are otherwise closely aligned.
Q2: Is the stated aisle width measured with the platform folded?
Yes. The 2,050 mm figure is based on a 1,000 × 1,200 mm pallet with the platform folded. With the platform deployed, it increases to approximately 2,500 mm.
Q3: Can the ME20/25 stack pallets into racking?
No. It is a horizontal-transport pallet truck with a 200 mm lift height, not a pallet stacker.
Q4: Should lead-acid or lithium batteries be selected?
Lead-acid suits conventional charging routines. Lithium is useful for opportunity charging, reduced maintenance and operations with limited battery-change time.
Q5: Can it travel over ramps or dock levellers?
Only within the approved gradient and ground-clearance limits. The route, floor transition and loaded traction conditions should be reviewed before operation.
