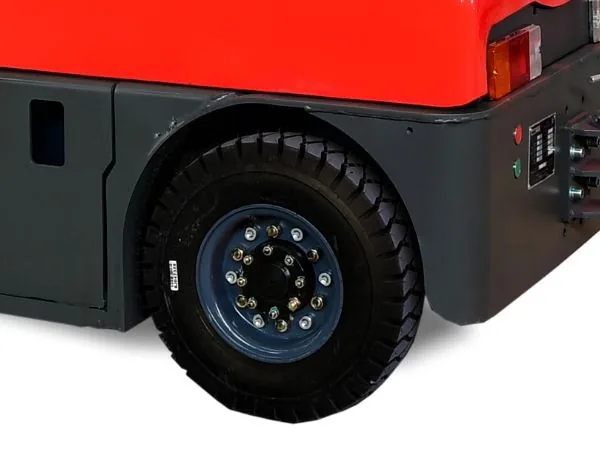

A rear inching button simplifies accurate alignment when connecting compatible trailers.
Tow Tractor

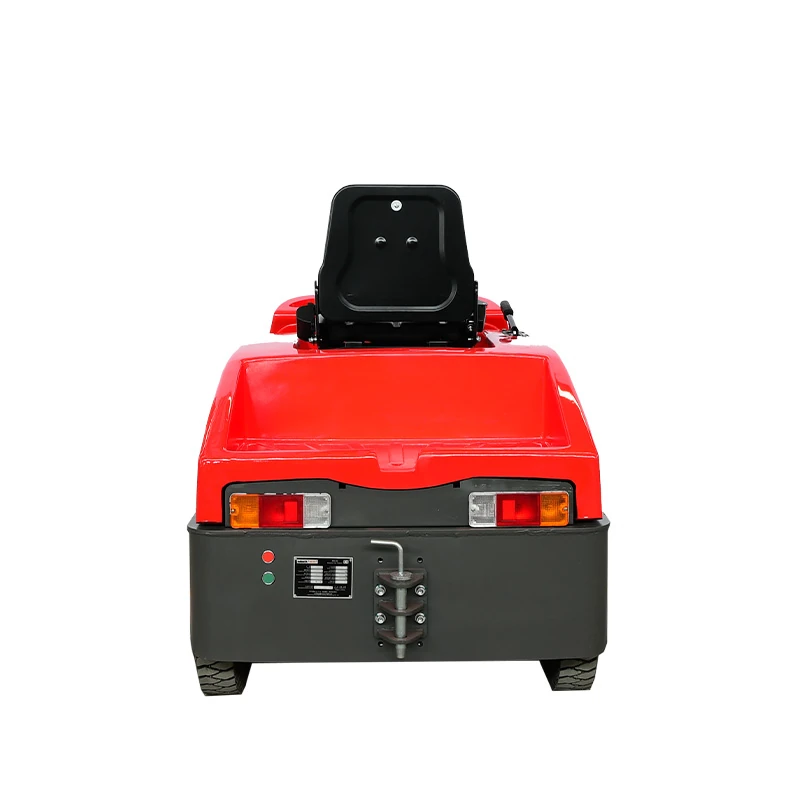

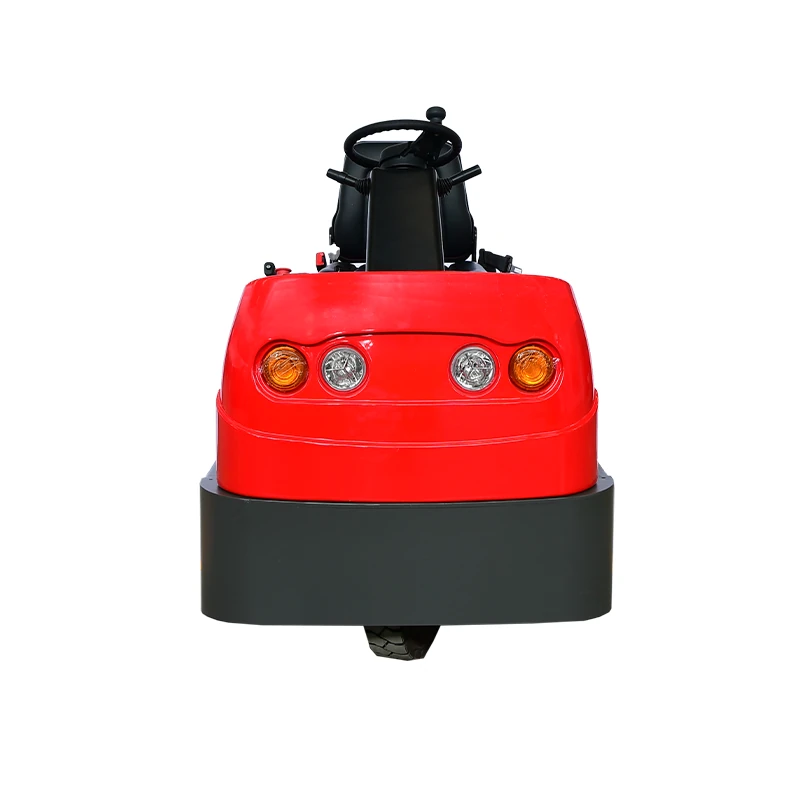

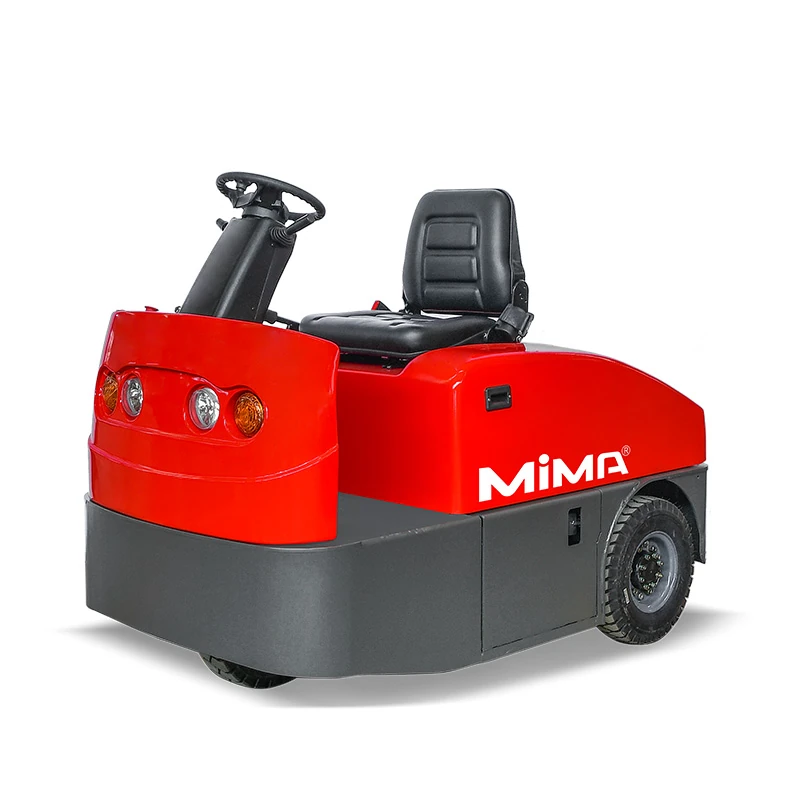

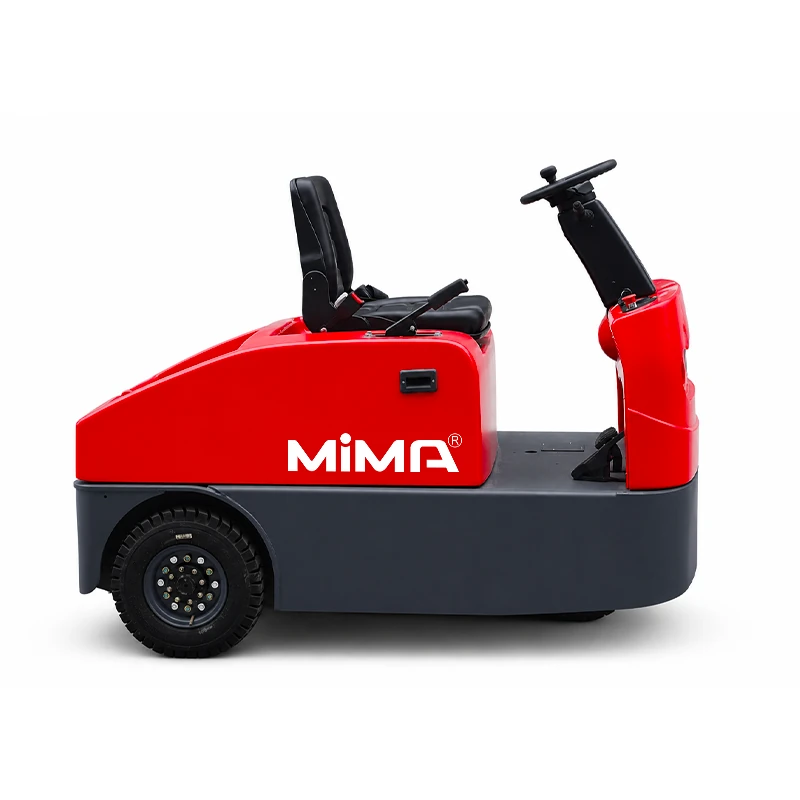

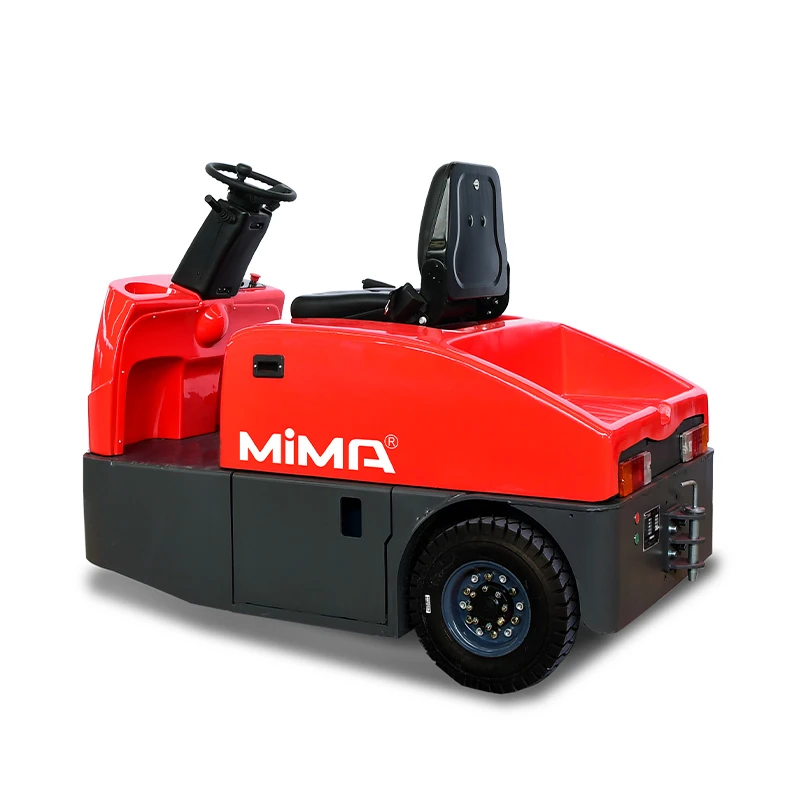

4.0-6.0T Seated Electric Tow Tractor MGA40/60
Load Capacity
4000 kg towing load
Lift Height
/
MGA40/60 is a seated electric tow tractor range for 4,000 and 6,000 kg trailer loads. Designed for longer horizontal transport routes, both models combine compact dimensions, electric power steering and an adjustable coupling with AC drive performance. They suit factory supply, inter-workshop material movement and airport baggage transport on firm, level surfaces.
Ideal For
- Factory and production-line material supply
- Long-distance transport between workshops
- Airport baggage and multi-trailer towing operations
Product Highlights

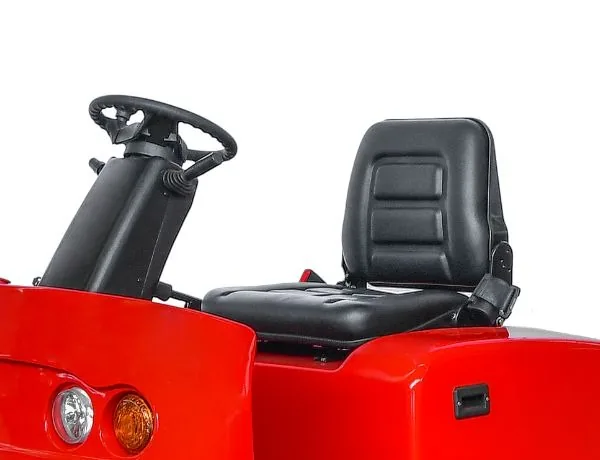

Seated operation and electric power steering support longer, repeated transport routes.
Multiple mast, battery, seat, tyre and attachment options suit different applications.
Technical Data
| Specification | MGA40 | MGA60 |
|---|---|---|
| Model | MGA40 | MGA60 |
| Operation Type | ||
| Load Capacity | 4000 kg towing load | 6000 kg towing load |
| Lift Height | / | / |
| Mast Type | ||
| Fork Outside Spread | / | / |
| Aisle Width | Application-dependent | Application-dependent |
| Battery Spec | 24V/490Ah lead-acid | 48V/280Ah lead-acid |
Product Description
Electric Towing for Production Logistics
The MGA40/60 supports repeated horizontal movement of material trains between warehouses, production lines and workshops. The seated layout is suited to longer routes and continuous transport cycles.
Two Towing Capacities
The MGA40 handles trailer loads up to 4,000 kg, while the MGA60 increases towing capacity to 6,000 kg. Selection should consider total train weight, route gradient and trailer rolling resistance.
Comfortable and Practical Operation
Electric power steering reduces steering effort, while the adjustable seat supports operators during longer journeys. External storage compartments provide space for documents, tools and personal items.
Flexible Trailer Connection
The coupling can be positioned at 210, 275, 340 or 405 mm. A rear inching button helps the operator align the truck accurately with the trailer, while the low-mounted battery supports vehicle stability.
Frequently Asked Questions
Q1: Should I choose the MGA40 or MGA60?
Choose the MGA40 for trailer trains up to 4,000 kg and the MGA60 for loads up to 6,000 kg. Route gradient, trailer quantity and rolling resistance must also be considered.
Q2: Can the MGA40/60 operate on ramps?
The standard towing ratings are intended for firm, level surfaces. Ramp operation requires a separate calculation covering gradient, train weight, traction and braking performance.
Q3: Which trailers are compatible?
The trailer must use a compatible coupling and have a drawbar height matching one of the available coupling positions. Trailer brakes and turning geometry should be checked before operation.
Q4: How much turning space is required?
Both models have a 1,650 mm truck turning radius. The complete route must also accommodate trailer off-tracking, train length, corners and pedestrian separation.
