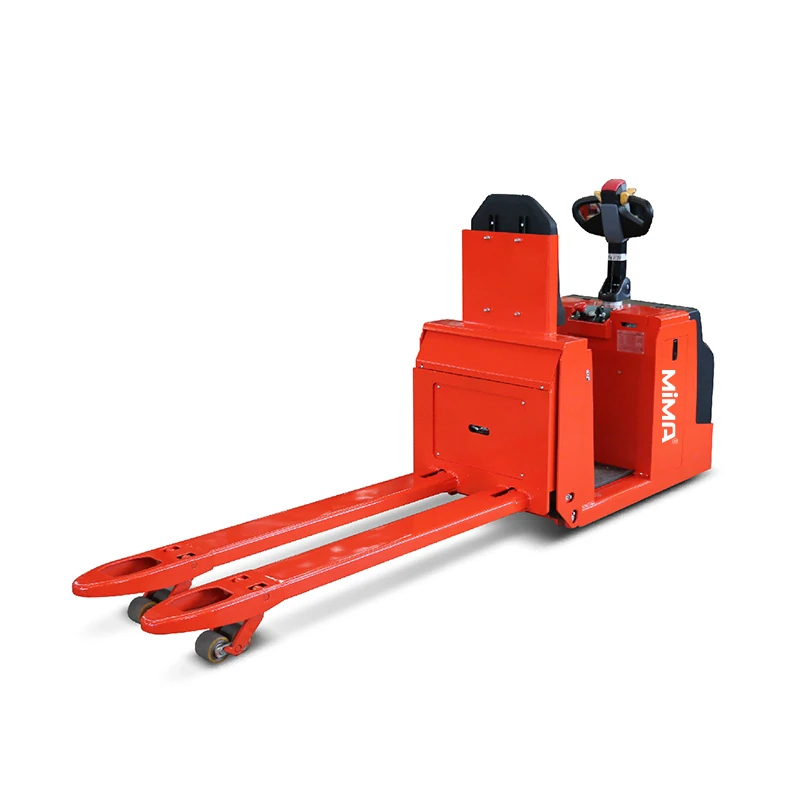

2.0T Low-Level Electric Order Picker MEC20
Load Capacity
2,000 kg
Lift Height
115 mm
MEC20 is a 2.0-tonne low-level electric order picker combining ground-level case picking with horizontal pallet transport. Its stand-on platform, electric steering, floating drive suspension and speed control support frequent stops and repeated travel. A compact operating layout makes it suitable for warehouses, supermarkets, workshops and distribution centres handling mixed picking and replenishment tasks.
Ideal For
- Ground-level and first-level order picking
- Warehouse and supermarket replenishment
- Medium-distance pallet transport between picking locations
Technical Data
| Specification | MEC20 |
|---|---|
| Model | MEC20 |
| Operation Type | |
| Load Capacity | 2,000 kg |
| Lift Height | 115 mm |
| Mast Type | |
| Fork Outside Spread | 685 mm |
| Aisle Width | 3,050 mm with 1,000 × 1,200 mm pallet |
| Battery Spec | 24V/210Ah lead-acid |
Product Description
Low-Level Picking and Pallet Transport
The MEC20 combines a rider pallet truck with a low-level picking platform. It is intended for case picking and pallet movement at floor level rather than high-level order picking or rack stacking.
Designed for Frequent Stops
The stand-on operating position provides quick access for repeated picking cycles. The operator can move between locations without repeatedly mounting a conventional seated truck.
Floating Drive Suspension
The suspension arrangement supports drive-wheel contact and traction across suitable warehouse floors. A stable four-point layout supports controlled straight travel and turning.
Controlled Travel and Braking
Electric steering reduces steering effort. Curve-speed control moderates travel through corners, while electromagnetic braking applies automatically when power is disconnected.
Protected Electrical Components
A Curtis controller and waterproof, dust-resistant electrical connections support reliability in warehouse applications. The reinforced chassis is designed for repeated material-handling cycles.
Frequently Asked Questions
Q1: How is MEC20 different from a standard pallet truck?
MEC20 is arranged for repeated low-level order picking as well as pallet transport, giving the operator easier access during stop-and-pick cycles.
Q2: Can MEC20 pick from elevated racking?
It is intended for floor-level and low-level picking. Its 115 mm fork lift does not provide an elevating operator platform or stacking mast.
Q3: Can it stack pallets?
No. MEC20 is a low-level order picker and horizontal-transport truck, not a pallet stacker.
Q4: How much aisle width is required?
The available specification indicates approximately 3,050 mm with a 1,000 × 1,200 mm pallet. Site clearance should be added for safe operation.
Q5: What should be checked before ordering?
Confirm pallet dimensions, required fork length, route width, number of picks per shift, battery runtime and whether cold-store protection is required.
