The stand-on platform has a low step height for frequent access. Electric steering, an integrated handle, multifunction display and OPS system support controlled daily operation.
Electric Reach Truck

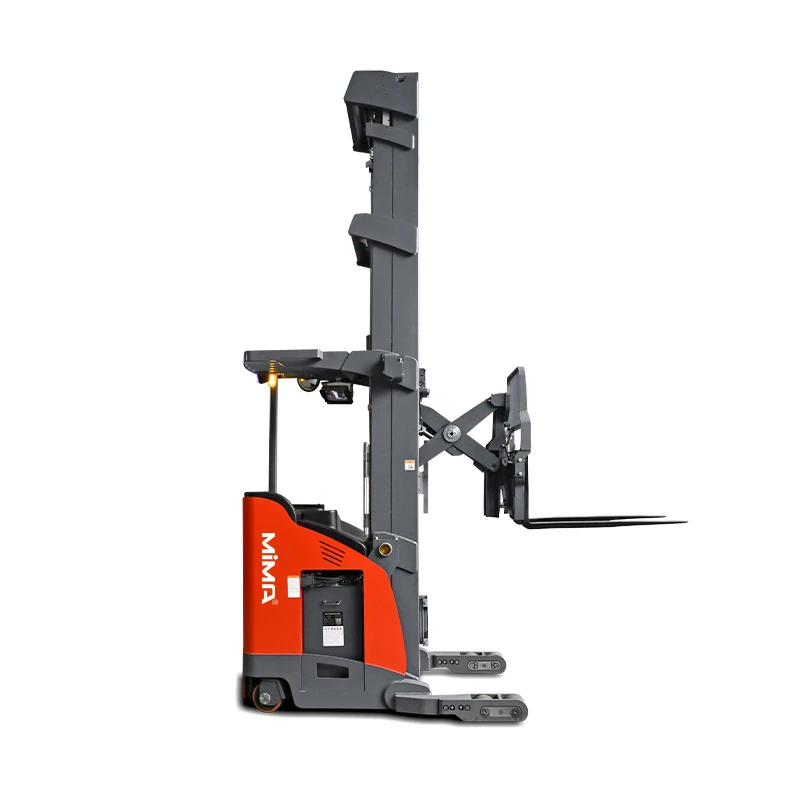

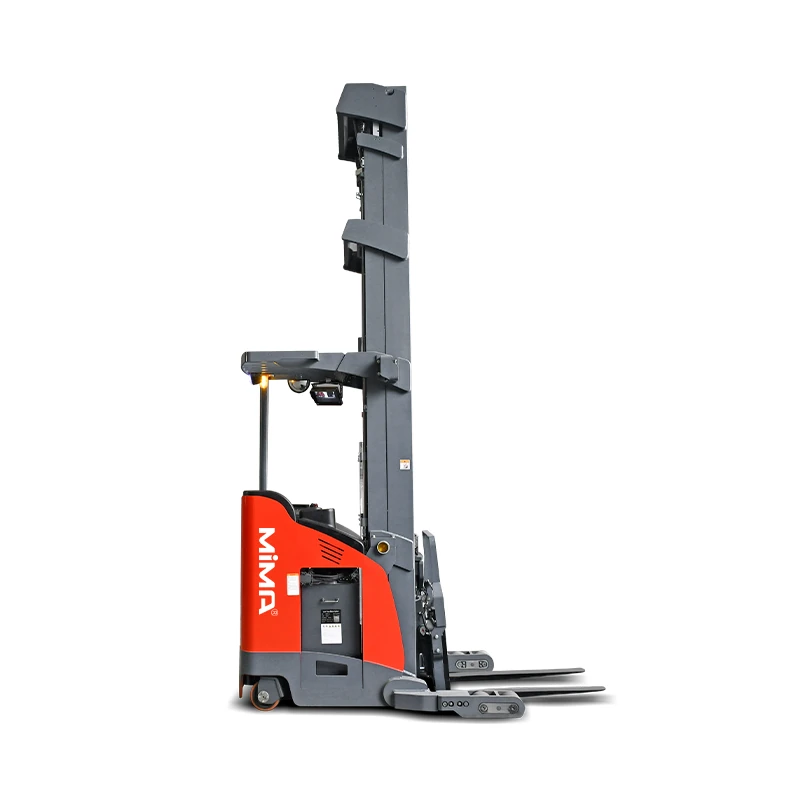

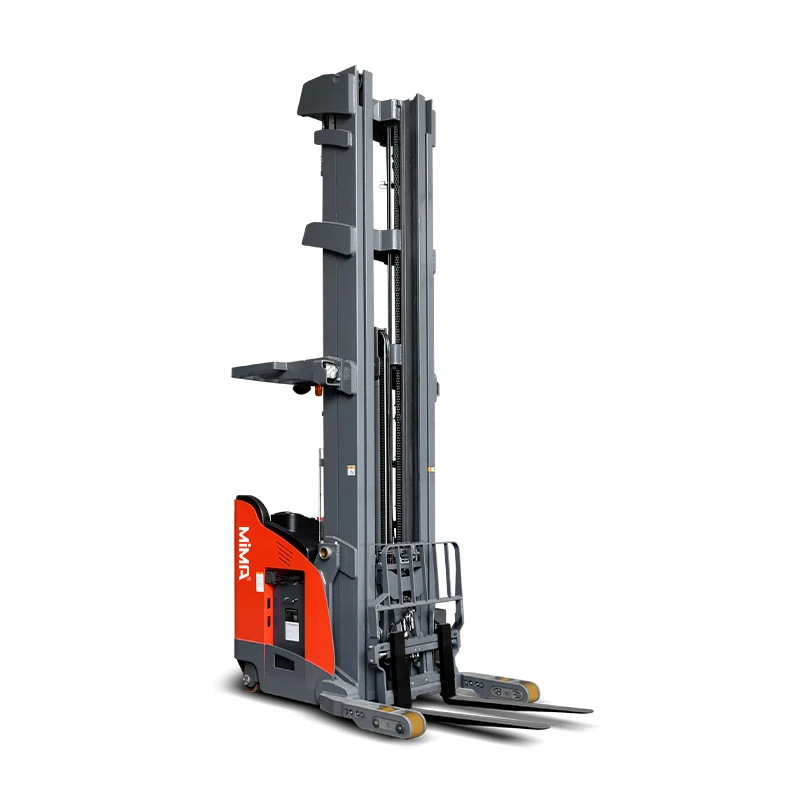

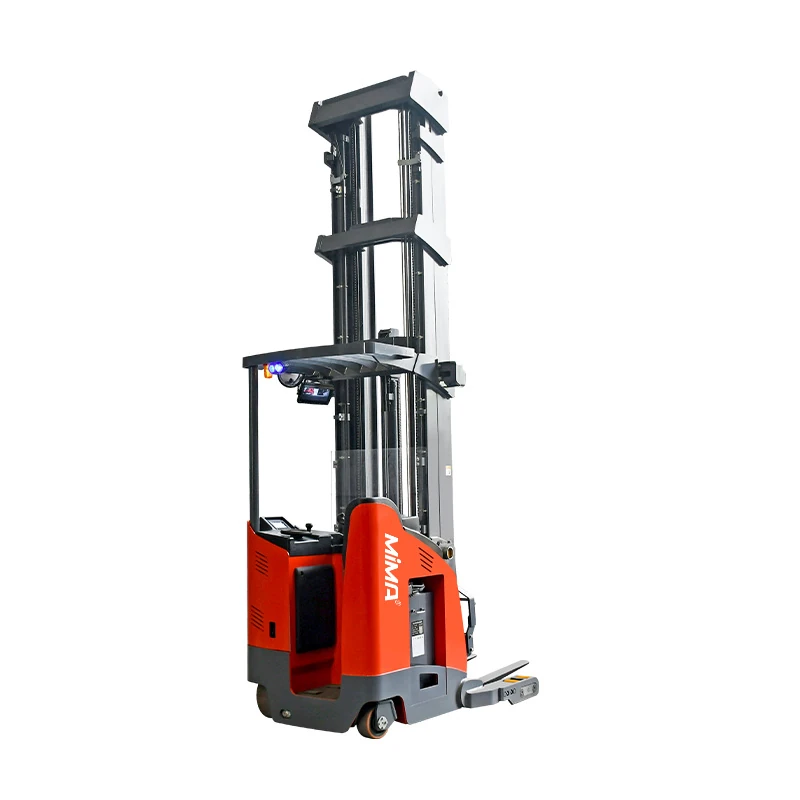

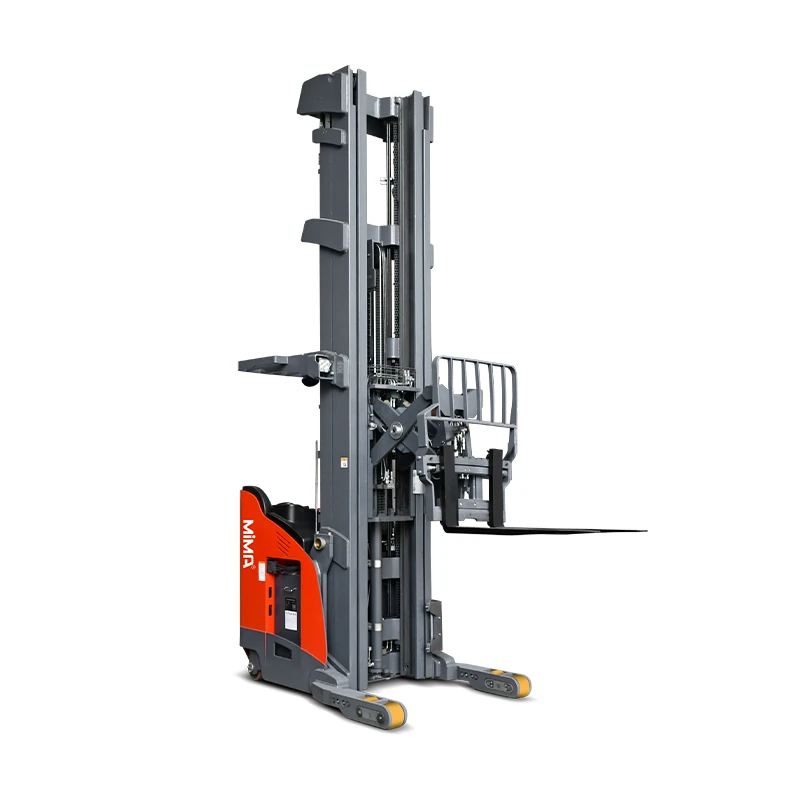

2.0T Electric Scissor Reach Truck MFE20
Load Capacity
2,000 kg
Lift Height
5,025–10,160 mm
MFE20 is a 2,000 kg stand-on electric scissor reach truck designed for single-deep racking and lift heights up to 10,160 mm. Its compact chassis, 590 mm reach mechanism, full-free mast and low-mounted battery support stable high-level handling, while proportional hydraulic control and electric steering provide precise pallet positioning in narrow warehouse aisles.
Ideal For
- Single-deep high-bay pallet racking
- Narrow-aisle handling of loads up to 2,000 kg
- Intensive warehouse and distribution operations
Product Highlights
Triplex full-free mast configurations cover lift heights from 5,025 to 10,160 mm. The mast structure and controlled lowering system support accurate pallet handling in high-bay warehouses.
A 48V/550Ah lead-acid battery is standard. Larger lead-acid options and a 48V/460Ah lithium battery allow the power system to be matched to working hours and charging arrangements.
Technical Data
| Specification | MFE20 |
|---|---|
| Model | MFE20 |
| Operation Type | |
| Load Capacity | 2,000 kg |
| Lift Height | 5,025–10,160 mm |
| Mast Type | Duplex Mast, Triple Mast |
| Fork Outside Spread | 445–700 mm |
| Aisle Width | 2,976 mm |
| Battery Spec | 48V/550Ah lead-acid; 660/770Ah lead-acid or 48V/460Ah lithium optional |
Product Description
Single-deep Scissor Reach Design
The MFE20 combines a 2,000 kg capacity with a single-scissor reach mechanism. Its approximately 590 mm reach is intended for standard single-deep racking while keeping the chassis compact.
High-level Storage Capability
Triplex full-free mast configurations cover lift heights from 5,025 to 10,160 mm. The mast structure and controlled lowering system support accurate pallet handling in high-bay warehouses.
Low-centre Chassis
The battery is positioned low within the truck to support stability. A four-point chassis and oscillating rear axle help maintain controlled wheel contact on suitable warehouse floors.
Integrated Load Positioning
Standard side shift and fork positioning allow operators to align the forks and pallet without repeated truck movement. Proportional controls provide measured hydraulic response.
Operator-focused Control Layout
The stand-on platform has a low step height for frequent access. Electric steering, an integrated handle, multifunction display and OPS system support controlled daily operation.

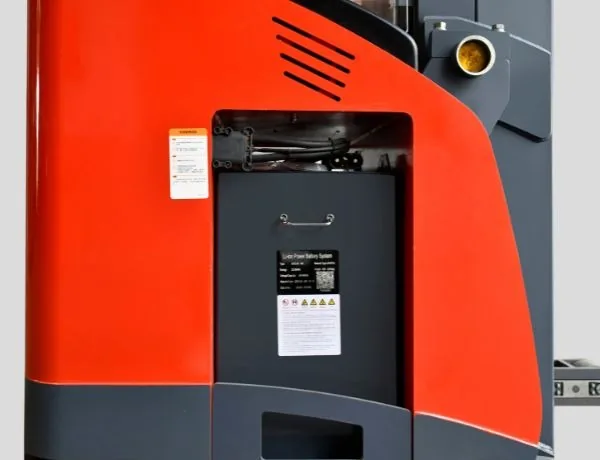

Lead-acid and Lithium Options
A 48V/550Ah lead-acid battery is standard. Larger lead-acid options and a 48V/460Ah lithium battery allow the power system to be matched to working hours and charging arrangements.
Frequently Asked Questions
Q1: What is the difference between the MFE15 and MFE20?
The MFE15 is a 1,500 kg double-scissor truck for double-deep racking. The MFE20 provides 2,000 kg capacity with a shorter single-scissor mechanism for conventional single-deep racking.
Q2: Can the MFE20 be used in double-deep racks?
It is primarily designed for single-deep storage. If access to a second pallet position is required, the MFE15 double-scissor configuration should normally be assessed.
Q3: What is the minimum working aisle width?
The reference value is 2,976 mm with a 1,000 × 1,200 mm pallet and standard battery. Larger batteries, attachments, load overhang and operating clearance can increase this requirement.
Q4: Can it carry 2,000 kg at 10,160 mm?
Residual capacity at the maximum lift height is lower than the nominal rating in many configurations. The applicable load chart must be reviewed before confirming the required capacity.
Q5: Which battery is suitable for multiple shifts?
The best choice depends on operating hours and charging opportunities. Higher-capacity lead-acid batteries support longer conventional shifts, while lithium can support opportunity charging between work cycles.
