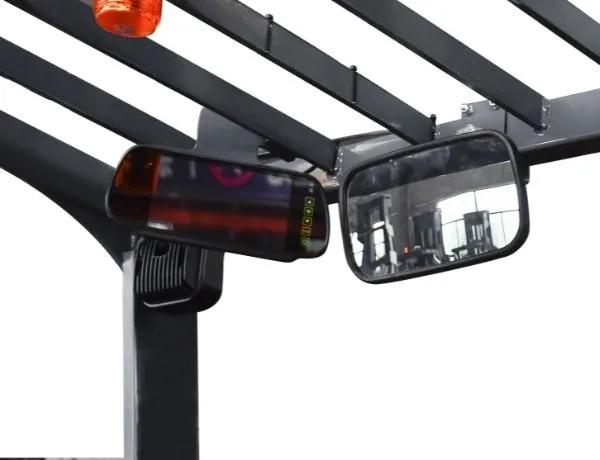

Retractable mast and small turning radius reduce right-angle stacking space.
Electric Reach Truck

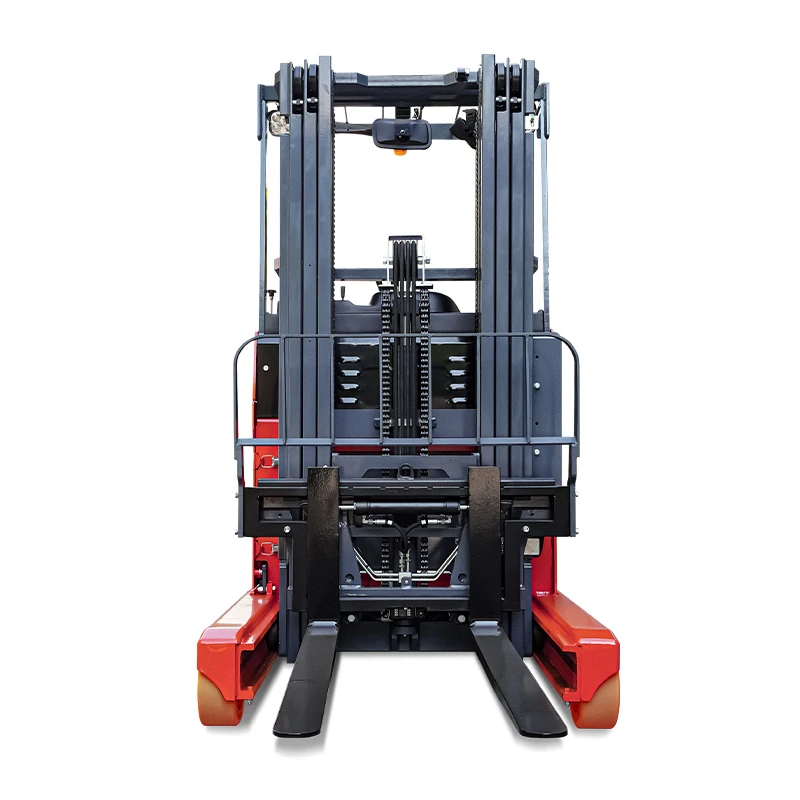

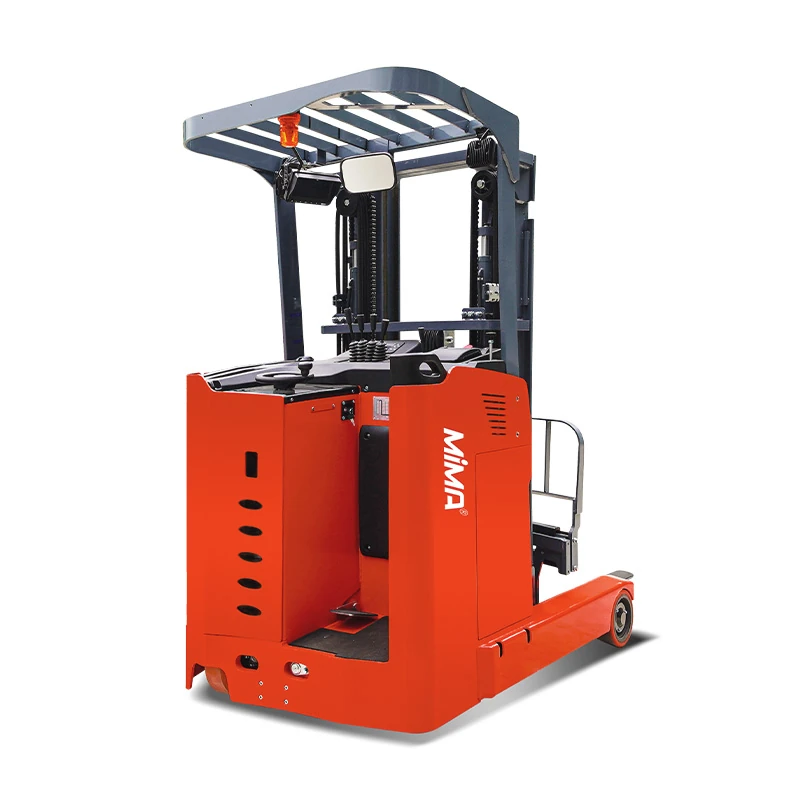

2.5–3.0T Heavy-duty Stand-on Electric Reach Truck MF25/30
Load Capacity
2,500 kg
Lift Height
3,000–8,000 mm
MF25/30 stand-on electric reach truck range is built for heavier pallet handling, with 2,500 or 3,000 kg capacity and lift heights up to 8,000 mm. A retractable mast, electric steering, speed reduction during cornering and robust AC drive provide controlled operation where high loads, narrow aisles and frequent stacking cycles must be combined.
Ideal For
- Heavy palletised materials in narrow warehouse aisles
- Manufacturing and industrial storage operations
- High-throughput handling requiring up to 3,000 kg capacity
Product Highlights
EPS reduces steering effort during frequent travel and pallet positioning.
Automatic speed reduction improves load stability when the truck turns.
Technical Data
| Specification | MF25 | MF30 |
|---|---|---|
| Model | MF25 | MF30 |
| Operation Type | ||
| Load Capacity | 2,500 kg | 3,000 kg |
| Lift Height | 3,000–8,000 mm | 3,000–8,000 mm |
| Mast Type | Duplex Mast, Triple Mast | Duplex Mast, Triple Mast |
| Fork Outside Spread | 244–772 mm | 250–750 mm |
| Aisle Width | 2,892–2,917 mm | 3,046–3,066 mm |
| Battery Spec | 48V/400Ah lead-acid; 48V/300Ah lithium optional | 48V/400Ah lead-acid; 48V/300Ah lithium optional |
Product Description
Heavy-load Reach Truck Platform
The MF25/30 range extends the stand-on electric reach truck concept to 2,500 and 3,000 kg loads. It is intended for operations requiring greater capacity without moving to a wider counterbalance forklift aisle.
Retractable Mast Configuration

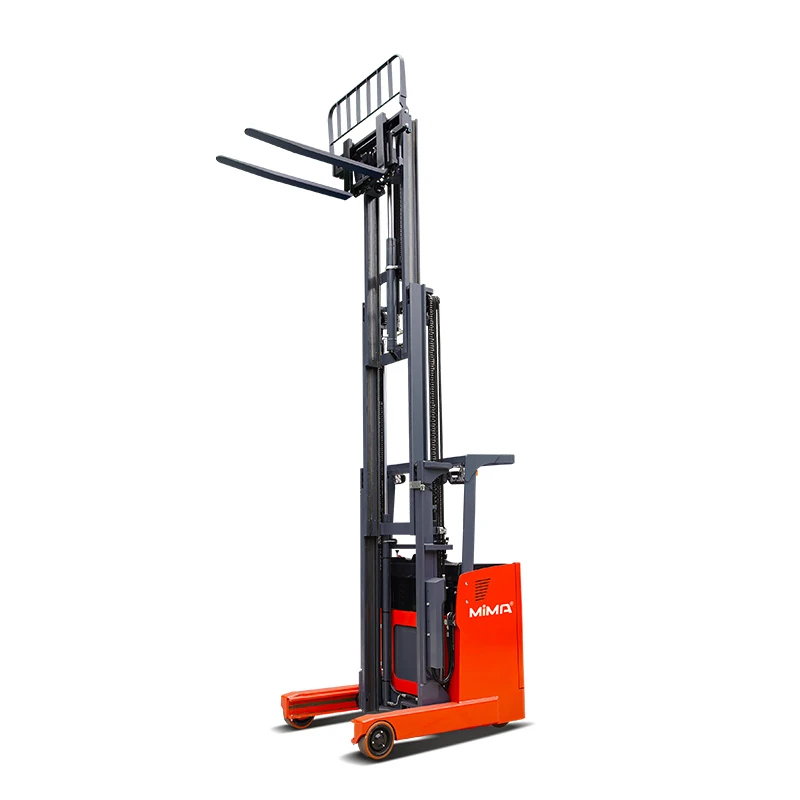

The mast extends towards the racking for pallet placement and retracts for travel. This configuration reduces overall truck length while the support arms help stabilise the load during high-capacity handling.
High-level Mast Options

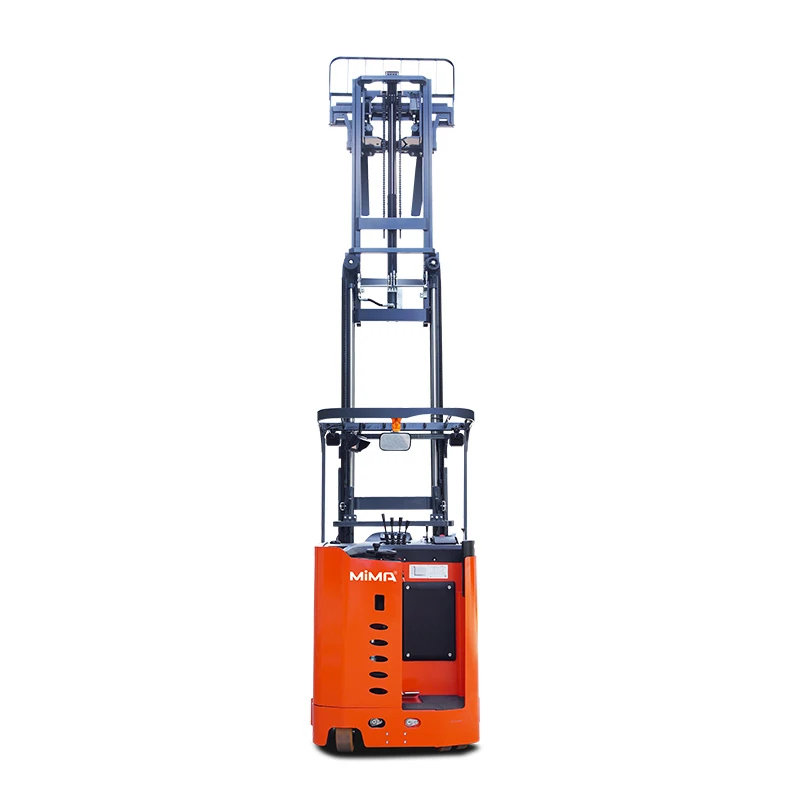

Duplex and triplex full-free mast configurations provide lift heights from 3,000 to 8,000 mm. Mast selection must be matched to the load centre, storage height and required residual capacity.
Controlled Heavy-load Travel
Electric power steering reduces steering effort, while automatic speed reduction controls travel during cornering. The AC drive system provides responsive operation during repeated transport and stacking cycles.
Battery Capacity for Intensive Work
A 48V/400Ah lead-acid battery is standard. A 48V/300Ah lithium option is available for applications requiring flexible charging and reduced battery servicing.
Frequently Asked Questions
Q1: What distinguishes the MF25 from the MF30?
The MF25 is rated at 2,500 kg and requires less stacking space. The MF30 is rated at 3,000 kg and has a larger chassis and turning radius to support the additional load.
Q2: Can these trucks replace a counterbalance forklift?
They can replace a counterbalance truck for suitable indoor racking applications where loads remain within the support-arm layout. Dock work, uneven floors and unrestricted outdoor handling may still require a counterbalance forklift.
Q3: Is the full rated capacity available at 8,000 mm?
The rated capacity applies under specified base conditions. Available capacity at 8,000 mm depends on the mast, load centre, attachment and load dimensions and must be confirmed from the load-capacity chart.
Q4: What floor conditions are required?
A level, smooth and structurally suitable warehouse floor is required. Floor flatness becomes increasingly important when handling heavy loads or operating at higher lift positions.
Q5: Can lithium batteries be supplied?
Yes. Both models can be configured with a 48V/300Ah lithium battery. Charger specification, charging location and expected shift pattern should be confirmed before ordering.
